Insulated boxes for passive temperature-controlled shipping

The insulated box determines the geometry, insulation performance and shipping format of a thermal packaging solution.

THERMOCON develops and supplies insulated boxes for pharma, biotech, diagnostics, food and industry — from lightweight standard EPS boxes and paper-based shipping solutions to dry-ice-compatible boxes with 70 mm walls.

EPS insulated box, paper insulated box or insulated paper bag — in a standard size or a custom design
Over 100 standard sizes — from 0.6 l internal volume to shipping complete Euro pallets
Wall thicknesses from 12.5 to 70 mm — matched to duration, payload and thermal margin
Suitable for dry ice — all EPS and paper insulated boxes can be used for deep-frozen shipments
Parcel or pallet shipping — formats for small quantities, large shipments and pallet transport
Custom insulated boxes — design, prototyping and series production when standard sizes do not fit

3 product groups

Boxes and shipping bags.

Lightweight insulation material

EPS insulated boxes

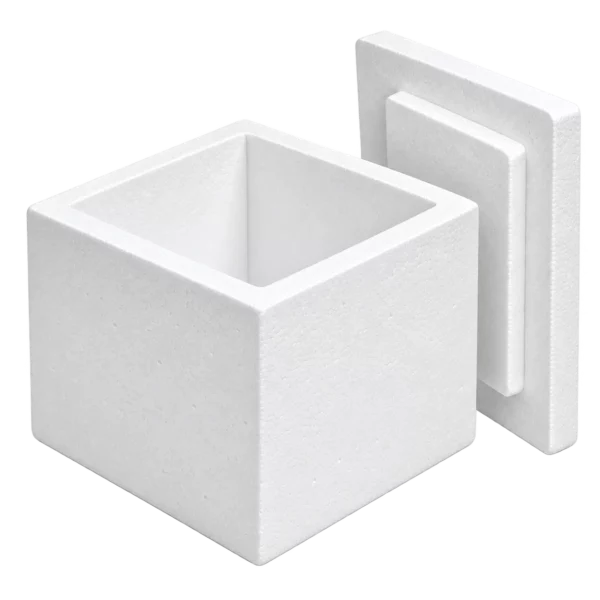

Open white EPS insulated box with its lid standing separately

EPS insulated boxes for passive temperature-controlled shipping.

View product

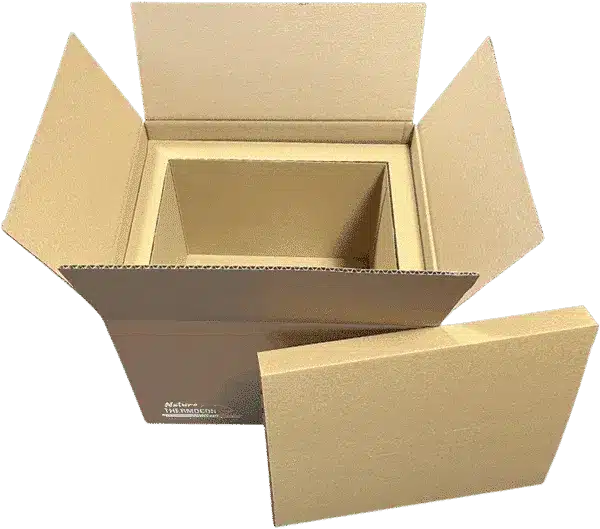

Paper-based insulation

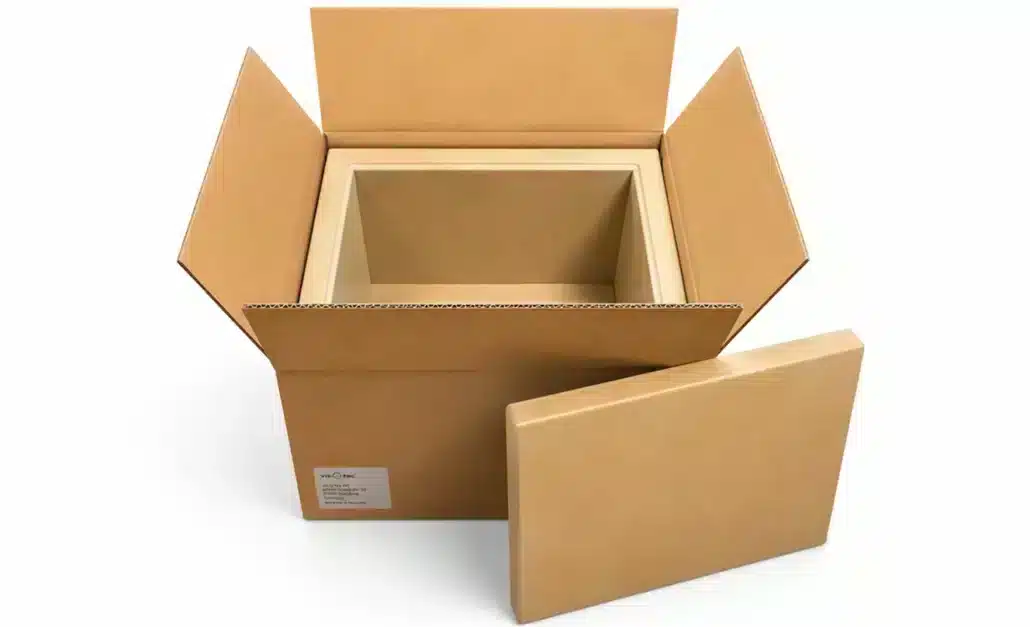

Paper Box

Insulated box with paper-based insulation and a sturdy outer carton.

View product

Insulated boxes for passive temperature-controlled shipping

The insulated box determines the geometry, insulation performance and shipping format of a thermal packaging solution.

Insulated boxes compared

Insulated boxes for different shipping requirements

Compare insulated boxes by material, internal volume, available sizes, insulation thickness, shipping format and suitability for dry ice.

EPS insulated boxes

Wide choice of lightweight standard boxes

Material

EPS (expanded polystyrene)

Internal volume

0.6–1,210 l

Standard sizes

approx. 100

Wall thickness

12.5–70 mm

Dry ice

suitable

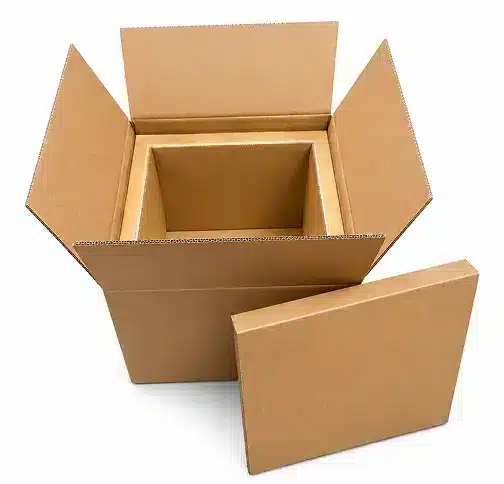

Paper insulated boxes

Paper-based shipping solutions

Material

paper-based

Internal volume

5–137 l

Standard sizes

Insulation thickness

30 or 60 mm

Dry ice

suitable

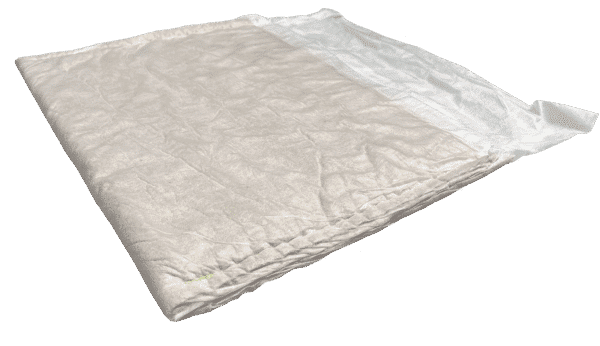

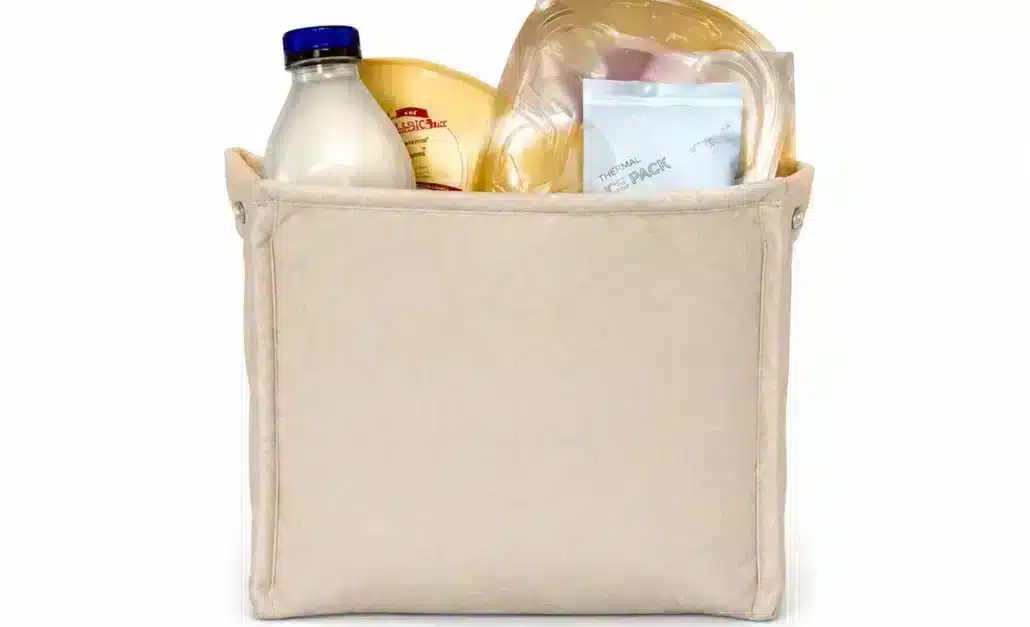

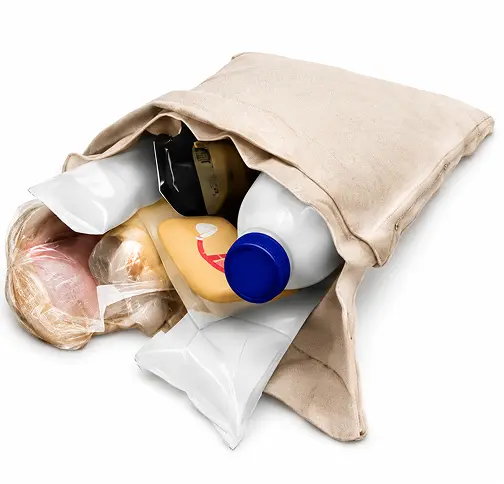

Insulated paper bags

Compact for smaller payloads

Material

paper-based

Sizes

S / M / L

External dimensions

44 × 31 to 55 × 42 cm

Insulation thickness

30 or 60 mm

Dry ice

not suitable

Dry ice insulated boxes

For frozen shipping requirements

Box material

EPS or paper

Shipping format

Parcel or pallet

Design

matched to the application and duration

Use

Dry ice

Selection

by payload and transport profile

Custom insulated boxes

Tailored to larger quantities and specific processes

Materials

EPS, paper or a reusable concept

Dimensions

custom

Insulation thickness

custom

Usage

Single-use or reusable

Cost efficiency

Large quantities and special requirements

Selection

Insulated box or complete pre-qualified system?

Choose between an insulated box without accessories and a complete pre-qualified system for pharma and biotech.

Insulated box without accessories

An empty insulated box without cooling elements, PCM or a defined pack-out. Select by construction, internal volume, internal dimensions and insulation thickness.

EPS insulated boxes

Paper insulated boxes

Insulated paper bags

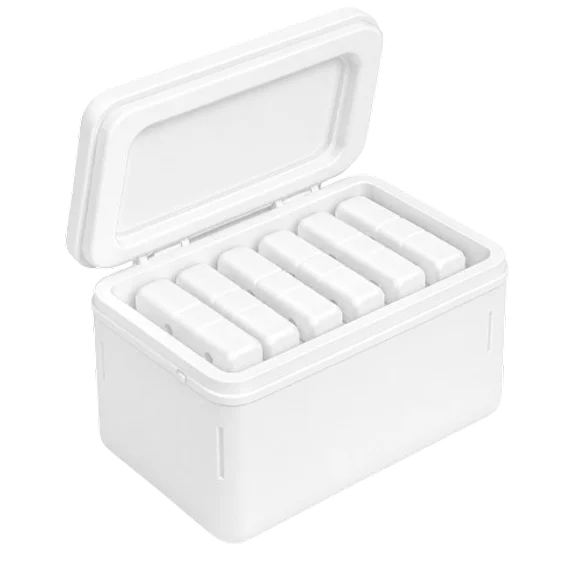

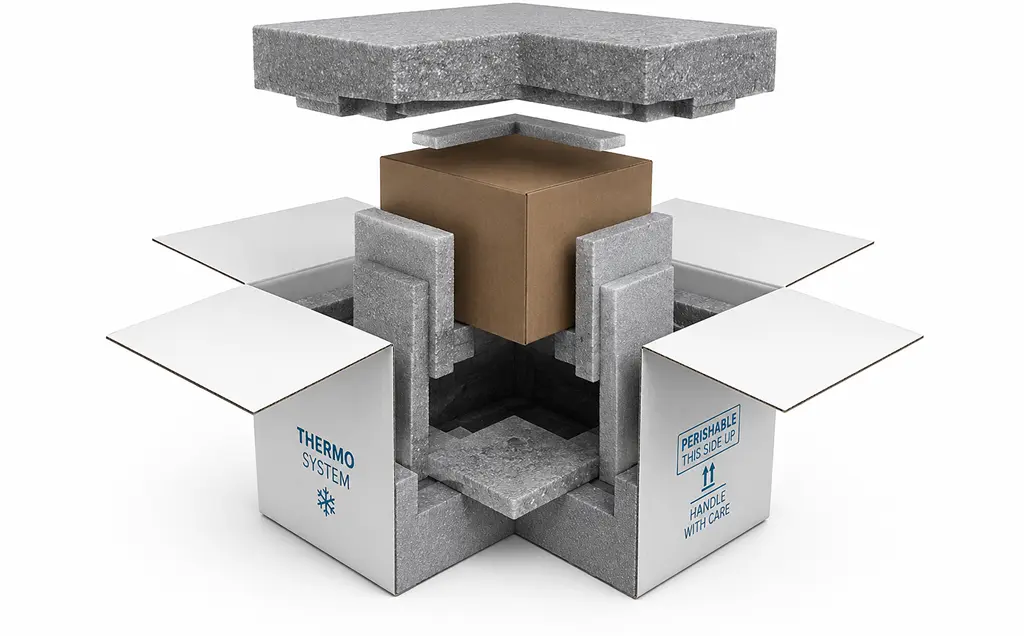

Complete system for pharma & biotech

The insulated box, cooling elements or PCM and pack-out are matched to the temperature range and duration, and tested in a climate chamber.

+2 to +8°C

+15 to +25°C

−15 to −25°C

< −60°C

A choice of over 100 standard boxes

The internal volume is the first step. Then choose the product type that suits your shipping requirements. The internal dimensions and the wall thickness help you pick a suitable thermal box.

Selection by internal volume

NOTE: The choice of material affects insulation performance, weight and sustainability. Thermal suitability follows from the tested system as a whole.

Which product type suits your shipment?

More filters (optional)

0 matching products

Matching standard boxes

Sort by

The items shown are filtered by {pill} internal volume and belong to product type {card}.

Multiple selection possible: Tick every product you are interested in and request them all with a single inquiry.

Matching standard boxes — 120 variants

EPS-Box 0,6 l	R 00447	0.576	120 × 120 × 40	145 × 145 × 80	12.5	EPS shipper	120	120	40	145	145	80
EPS-Box 0,7 l	R 00554	0.694	118 × 98 × 60	144 × 124 × 86	13	EPS shipper	118	98	60	144	124	86
EPS-Box 1,0 l	R 11102	1	125 × 55 × 145	227 × 157 × 245	50	EPS shipper	125	55	145	227	157	245
EPS-Box 1,1 l	L 59051	1.11	130 × 100 × 85	165 × 135 × 110	17.5	EPS shipper	130	100	85	165	135	110
EPS-Box 1,8 l	R 00456	1.76	200 × 110 × 80	260 × 170 × 135	30	EPS shipper	200	110	80	260	170	135
EPS-Box 1,9 l	L 59053	1.93	240 × 115 × 70	300 × 175 × 130	30	EPS shipper	240	115	70	300	175	130
EPS-Box 2,0 l	L 59058	2	238 × 183 × 46	308 × 253 × 118	35	EPS shipper	238	183	46	308	253	118
EPS-Box 2,6 l	R 02222	2.74	140 × 140 × 135	200 × 200 × 210	30	EPS shipper	140	140	135	200	200	210
EPS-Box 2,9 l	L 59052	2.93	230 × 182 × 70	274 × 224 × 110	22	EPS shipper	230	182	70	274	224	110
EPS-Box 3,1 l	R 01484	3.105	200 × 115 × 135	260 × 170 × 190	30	EPS shipper	200	115	135	260	170	190
EPS-Box 3,4 l	R 02538	3.41	175 × 150 × 130	235 × 210 × 190	30	EPS shipper	175	150	130	235	210	190
EPS-Box 3,5 l	R 02414	3.45	227 × 178 × 85	260 × 210 × 115	16	EPS shipper	227	178	85	260	210	115
EPS-Box 3,7 l	L 59050	3.65	240 × 117 × 130	300 × 177 × 190	30	EPS shipper	240	117	130	300	177	190
EPS-Box 3,7 l	L 59056	3.7	238 × 183 × 85	308 × 253 × 155	35	EPS shipper	238	183	85	308	253	155
EPS-Box 3,8 l	R 11067	3.75	125 × 125 × 250	203 × 203 × 332	39	EPS shipper	125	125	250	203	203	332
EPS-Box 4,4 l	S 08130	4.4	210 × 140 × 150	253 × 183 × 190	21.5	EPS shipper	210	140	150	253	183	190
EPS-Box 4,5 l	R 02484	4.5	200 × 150 × 150	340 × 290 × 290	70	EPS shipper	200	150	150	340	290	290
EPS-Box 4,6 l	R 10423	4.594	175 × 175 × 150	265 × 265 × 245	45	EPS shipper	175	175	150	265	265	245
EPS-Box 4,7 l	R 10982	4.725	270 × 140 × 125	330 × 200 × 185	30	EPS shipper	270	140	125	330	200	185
EPS-Box 4,9 l	R 11020	4.9	140 × 140 × 250	200 × 200 × 325	30	EPS shipper	140	140	250	200	200	325
EPS-Box 5,0 l	R 03223	4.977	315 × 200 × 79	355 × 240 × 114	20	EPS shipper	315	200	79	355	240	114
EPS-Box 5,2 l	S 08152	5.184	180 × 160 × 180	222 × 202 × 225	21	EPS shipper	180	160	180	222	202	225
EPS-Box 5,9 l	R 02302	5.85	260 × 150 × 150	380 × 270 × 270	60	EPS shipper	260	150	150	380	270	270
EPS-Box 5,9 l	S 7ST0010	5.9	178 × 178 × 185	302 × 302 × 305	60	EPS shipper	178	178	185	302	302	305
EPS-Box 5,9 l	R 01165	5.928	240 × 190 × 130	320 × 255 × 205	40	EPS shipper	240	190	130	320	255	205
EPS-Box 6,0 l	L 59057	5.97	238 × 183 × 137	308 × 253 × 210	35	EPS shipper	238	183	137	308	253	210
EPS-Box 6,5 l	R 11022	6.5	215 × 195 × 155	300 × 285 × 235	42.5	EPS shipper	215	195	155	300	285	235
EPS-Box 7,4 l	S 08480	7.4	270 × 165 × 165	330 × 225 × 225	30	EPS shipper	270	165	165	330	225	225
EPS-Box 7,5 l	R 11257	7.5	228 × 178 × 185	260 × 210 × 205	16	EPS shipper	228	178	185	260	210	205
EPS-Box 7,6 l	R 02745	7.6	Ø 174	222 × 222 × 185	24	EPS shipper	174			222	222	185
Neopor-Box 8,1 l	R 10592	8.1	350 × 180 × 130	450 × 280 × 230	50	EPS shipper	350	180	130	450	280	230
EPS-Box 8,3 l	L 59059	8.3	238 × 183 × 191	308 × 253 × 262	35	EPS shipper	238	183	191	308	253	262
EPS-Box 8,4 l	S 10758	8.4	270 × 107 × 145	320 × 285 × 190	25	EPS shipper	270	107	145	320	285	190
EPS-Box 8,4 l	L/R 59055	8.4	315 × 200 × 134	355 × 240 × 166	20	EPS shipper	315	200	134	355	240	166
EPS-Box 9,1 l	R 01459	9.1	275 × 195 × 170	335 × 255 × 230	30	EPS shipper	275	195	170	335	255	230
EPS-Box 9,2 l	S 10757	9.2	270 × 235 × 145	320 × 285 × 190	25	EPS shipper	270	235	145	320	285	190
EPS-Box 9,3 l	S 11003	9.3	210 × 210 × 210	300 × 300 × 300	45	EPS shipper	210	210	210	300	300	300
EPS-Box 10,0 l	S 7ST0006	10	430 × 315 × 75	480 × 365 × 139	25	EPS shipper	430	315	75	480	365	139
EPS-Box 10,1 l	R 02142	10.1	205 × 205 × 240	285 × 285 × 315	40	EPS shipper	205	205	240	285	285	315
EPS-Box 10,1 l	S 11066	10.1	210 × 210 × 230	350 × 350 × 370	70	EPS shipper	210	210	230	350	350	370
EPS-Box 11,0 l	R 02415	11	228 × 178 × 270	260 × 210 × 300	16	EPS shipper	228	178	270	260	210	300
EPS-Box 11,6 l	R 03152	11.6	305 × 190 × 200	405 × 290 × 300	50	EPS shipper	305	190	200	405	290	300
EPS-Box 11,8 l	R 03227	11.8	315 × 200 × 188	355 × 240 × 220	20	EPS shipper	315	200	188	355	240	220
EPS-Box 12,1 l	R 01777	12.1	285 × 185 × 220	367 × 267 × 320	38.5	EPS shipper	285	185	220	367	267	320
EPS-Box 12,2 l	L/R 59060	12.2	238 × 183 × 281	308 × 253 × 353	35	EPS shipper	238	183	281	308	253	353
EPS-Box 12,8 l	R 01843	12.8	354 × 232 × 156	405 × 290 × 200	25	EPS shipper	354	232	156	405	290	200
EPS-Box 12,8 l	R 01394	12.8	305 × 210 × 200	365 × 270 × 250	30	EPS shipper	305	210	200	365	270	250
Neopor-Box 14,2 l	R 10594	14.2	315 × 245 × 185	415 × 345 × 285	50	EPS shipper	315	245	185	415	345	285
EPS-Box 14,6 l	S 10646	14.6	406 × 261 × 138	470 × 325 × 200	30	EPS shipper	406	261	138	470	325	200
EPS-Box 15,0 l	S 7ST0004	15	520 × 385 × 75	575 × 440 × 139	27	EPS shipper	520	385	75	575	440	139
EPS-Box 15,3 l	R 00622	15.3	330 × 160 × 290	420 × 220 × 350	30	EPS shipper	330	160	290	420	220	350
EPS-Box 15,4 l	L 59086	15.4	420 × 305 × 120	480 × 365 × 180	30	EPS shipper	420	305	120	480	365	180
EPS-Box 15,8 l	R 13620	15.8	305 × 220 × 235	365 × 280 × 295	30	EPS shipper	305	220	235	365	280	295
EPS-Box 17,0 l	S 7ST0005	17	430 × 315 × 125	480 × 365 × 189	25	EPS shipper	430	315	125	480	365	189
EPS-Box 17,9 l	S 01902	17.9	240 × 240 × 310	360 × 360 × 430	60	EPS shipper	240	240	310	360	360	430
EPS-Box 17,9 l	R 02223	17.9	420 × 305 × 140	480 × 365 × 185	30	EPS shipper	420	305	140	480	365	185
EPS-Box 18,8 l	R 01688	18.8	300 × 250 × 250	400 × 350 × 350	50	EPS shipper	300	250	250	400	350	350
EPS-Box 19,2 l	R 13630	19.2	380 × 220 × 230	520 × 360 × 335	60	EPS shipper	380	220	230	520	360	335
EPS-Box 19,3 l	R 10981	19.3	406 × 282 × 169	446 × 322 × 209	20	EPS shipper	406	282	169	446	322	209
EPS-Box 19,7 l	S 10248	19.7	345 × 260 × 220	425 × 340 × 300	40	EPS shipper	345	260	220	425	340	300
EPS-Box 20,5 l	L 59054	20.5	392 × 327 × 160	452 × 387 × 215	30	EPS shipper	392	327	160	452	387	215
EPS-Box 25,0 l	S 7ST0003	25	520 × 385 × 125	575 × 440 × 189	27	EPS shipper	520	385	125	575	440	189
EPS-Box 26,3 l	R 01395	26.3	420 × 305 × 205	480 × 365 × 255	30	EPS shipper	420	305	205	480	365	255
EPS-Box 27,0 l	R 11021	27	300 × 300 × 300	400 × 400 × 400	50	EPS shipper	300	300	300	400	400	400
EPS-Box 27,5 l	L 59587	27.5	420 × 305 × 215	480 × 365 × 285	30	EPS shipper	420	305	215	480	365	285
EPS-Box 30,2 l	R 00833	30.2	300 × 300 × 355	360 × 360 × 430	30	EPS shipper	300	300	355	360	360	430
EPS-Box 32,0 l	S 7ST0009	32	420 × 312 × 247	480 × 365 × 304	27	EPS shipper	420	312	247	480	365	304
EPS-Box 32,0 l	S 7ST0008	32	432 × 254 × 273	540 × 358 × 353	40	EPS shipper	432	254	273	540	358	353
Neopor-Box 32,6 l	R 10593	32.6	400 × 340 × 240	500 × 440 × 340	50	EPS shipper	400	340	240	500	440	340
EPS-Box 33,2 l	S 10646+R	33.2	406 × 261 × 313	470 × 325 × 375	30	EPS shipper	406	261	313	470	325	375
EPS-Box 35,2 l	R 13621	35.2	510 × 300 × 230	570 × 360 × 290	30	EPS shipper	510	300	230	570	360	290
EPS-Box 38,4 l	S 11455	38.4	420 × 320 × 285	480 × 380 × 347	30	EPS shipper	420	320	285	480	380	347
EPS-Box 39,3 l	L 59586+R	39.3	420 × 305 × 315	480 × 365 × 375	30	EPS shipper	420	305	315	480	365	375
EPS-Box 39,5 l	S 7ST0007	39.5	470 × 280 × 300	550 × 360 × 380	40	EPS shipper	470	280	300	550	360	380
EPS-Box 40,9 l	L 54105	40.9	540 × 392 × 193	585 × 435 × 232	22	EPS shipper	540	392	193	585	435	232
EPS-Box 41,1 l	R 02082	41.1	465 × 340 × 260	565 × 440 × 370	50	EPS shipper	465	340	260	565	440	370
EPS-Box 41,8 l	R 02223+R	41.8	420 × 305 × 335	480 × 365 × 380	30	EPS shipper	420	305	335	480	365	380
EPS-Box 46,7 l	R 01556	46.7	495 × 295 × 320	545 × 345 × 380	25	EPS shipper	495	295	320	545	345	380
EPS-Box 51,0 l	R 02348	51	500 × 300 × 340	600 × 400 × 440	50	EPS shipper	500	300	340	600	400	440
EPS-Box 51,2 l	R 01395+R	51.2	420 × 305 × 400	480 × 365 × 450	30	EPS shipper	420	305	400	480	365	450
EPS-Box 51,2 l	L 59587+R	51.2	420 × 305 × 400	480 × 365 × 470	30	EPS shipper	420	305	400	480	365	470
EPS-Box 51,7 l	S 10646+2R	51.7	406 × 261 × 488	470 × 325 × 550	30.1	EPS shipper	406	261	488	470	325	550
EPS-Box 51,7 l	R 01955	51.7	410 × 260 × 485	470 × 325 × 545	30	EPS shipper	410	260	485	470	325	545
EPS-Box 53,7 l	L 59062	53.7	500 × 305 × 352	558 × 363 × 410	29	EPS shipper	500	305	352	558	363	410
EPS-Box 54,6 l	S 10730	54.6	420 × 325 × 400	483 × 388 × 462	30	EPS shipper	420	325	400	483	388	462
EPS-Box 64,6 l	S 02529/10791	64.6	515 × 380 × 330	575 × 440 × 380	30	EPS shipper	515	380	330	575	440	380
EPS-Box 71,2 l	R 13649	71.2	595 × 460 × 260	715 × 580 × 380	60	EPS shipper	595	460	260	715	580	380
EPS-Box 75,0 l	S 7ST0002	75	515 × 380 × 372	575 × 440 × 429	27	EPS shipper	515	380	372	575	440	429
EPS-Box 82,7 l	R 01586	82.7	560 × 360 × 410	600 × 400 × 440	20	EPS shipper	560	360	410	600	400	440
EPS-Box 90,3 l	R 02081	90.3	590 × 340 × 450	690 × 445 × 560	50	EPS shipper	590	340	450	690	445	560
Small Pallet Shipper 97,0 l	R 13650	97	770 × 600 × 210	890 × 720 × 430	60	EPS shipper	770	600	210	890	720	430
EPS-Box 97,3 l	R 01954	97.3	590 × 340 × 485	650 × 405 × 545	30	EPS shipper	590	340	485	650	405	545
EPS-Box 105,0 l	R 10610	105	1076 × 316 × 305	1150 × 380 × 383	25	EPS shipper	1076	316	305	1150	380	383
EPS-Box 117,0 l	R 11544	117	595 × 460 × 430	715 × 580 × 550	60	EPS shipper	595	460	430	715	580	550
EPS-Box 142,3 l	R 10923	142.3	595 × 460 × 520	715 × 580 × 640	60	EPS shipper	595	460	520	715	580	640
Euro Pallet Shipper 155 l	R 11487-89	154.8	940 × 540 × 305	1170 × 770 × 490	60	EPS shipper	940	540	305	1170	770	490
Small Pallet Shipper 235,6 l	R 10924	235.6	770 × 600 × 510	890 × 720 × 740	60	EPS shipper	770	600	510	890	720	740
Euro Pallet Shipper 300 l	R 11487-89	299.5	940 × 540 × 590	1170 × 770 × 775	60	EPS shipper	940	540	590	1170	770	775
Euro Pallet Shipper 333 l	R 13840-G	333	960 × 560 × 620	1170 × 770 × 795	60	EPS shipper	960	560	620	1170	770	795
Euro Pallet Shipper 445 l	R 11487-89	444.2	940 × 540 × 875	1170 × 770 × 1060	60	EPS shipper	940	540	875	1170	770	1060
Euro Pallet Shipper 495 l	R 10705	495	960 × 560 × 920	1170 × 770 × 1095	60	EPS shipper	960	560	920	1170	770	1095
Euro Pallet Shipper 590 l	R 11487-89	588.8	940 × 540 × 1160	1170 × 770 × 1345	60	EPS shipper	940	540	1160	1170	770	1345
Euro Pallet Shipper 735 l	R 11487-89	733.5	940 × 540 × 1445	1170 × 770 × 1630	60	EPS shipper	940	540	1445	1170	770	1630
Pallet Transporter 1210 l	S 11259-62	1210	1242 × 842 × 1155	1450 × 1050 × 1573	50	EPS shipper	1242	842	1155	1450	1050	1573
THERMOCON Paper 5 Basic	7TCN001C	5	210 × 150 × 145	285 × 225 × 225	30	Paper shipper	210	150	145	285	225	225
THERMOCON Paper 5 Pro	7TCN001A	5	210 × 150 × 145	285 × 225 × 225	30	Paper shipper	210	150	145	285	225	225
THERMOCON Paper 14 Basic	7TCN003C	14	290 × 230 × 215	365 × 305 × 295	30	Paper shipper	290	230	215	365	305	295
THERMOCON Paper 14 Pro	7TCN003A	14	290 × 230 × 215	365 × 305 × 295	30	Paper shipper	290	230	215	365	305	295
THERMOCON Paper 24 Basic	7TCN004C	24	350 × 290 × 235	430 × 370 × 320	30	Paper shipper	350	290	235	430	370	320
THERMOCON Paper 24 Pro	7TCN004A	24	350 × 290 × 235	430 × 370 × 320	30	Paper shipper	350	290	235	430	370	320
THERMOCON Paper 29 Pro	7TCN006A	29	375 × 335 × 230	505 × 465 × 360	60	Paper shipper	375	335	230	505	465	360
THERMOCON Paper 36 Pro	7TCN007A	36	375 × 275 × 350	505 × 405 × 485	60	Paper shipper	375	275	350	505	405	485
THERMOCON Paper 55 Basic	7TCN005C	55	530 × 350 × 295	605 × 430 × 380	30	Paper shipper	530	350	295	605	430	380
THERMOCON Paper 55 Pro	7TCN005A	55	530 × 350 × 295	605 × 430 × 380	30	Paper shipper	530	350	295	605	430	380
THERMOCON Paper 71 Pro	7TCN008A	71	555 × 375 × 340	685 × 505 × 485	60	Paper shipper	555	375	340	685	505	485
THERMOCON Paper 113 Pro	7TCN009A	113	590 × 455 × 420	725 × 600 × 570	60	Paper shipper	590	455	420	725	600	570
THERMOCON Paper 137 Pro	7TCN010A	137	590 × 455 × 510	725 × 600 × 660	60	Paper shipper	590	455	510	725	600	660
THERMOCON Paper Bag S	7TCPB001	4	400 × 310 × 15	440 × 310 × 30	15	Paper mailing bag	400	310	15	440	310	30
THERMOCON Paper Bag M	7TCPB002	6	400 × 365 × 15	440 × 400 × 30	15	Paper mailing bag	400	365	15	440	400	30
THERMOCON Paper Bag L	7TCPB003	8	510 × 410 × 15	550 × 420 × 30	15	Paper mailing bag	510	410	15	550	420	30

Sustainability

Assess the sustainability of insulated boxes as a whole

Material alone is not decisive. Product protection, thermal performance, material use, transport and end-of-life all interact.

Material matters — the complete system determines performance

EPS and paper-based solutions have different strengths. What matters is their suitability for the specific shipping process.

Decision criteria

Six criteria for assessing sustainability

Prevent product loss

Product protection often has the greatest environmental and economic significance.

Thermal margin

Insufficient margin can increase the risk of temperature excursions.

Material and recycled content

Consider material type, quantity and recycled content together.

Transport efficiency

Weight and volume affect freight requirements and transport emissions.

End-of-life

Recyclability and the disposal routes actually available must be considered.

Reuse and return logistics

Include usage cycles, return transport, cleaning, losses and quality assurance.

Materials and usage concepts
