Pre-qualification applies to the tested system configuration of insulated shipper, coolant packs and packout – not to the insulated shipper alone.
THERMOCON supplies complete systems tested in climatic chambers for temperature-controlled transport – tested against established ISTA and AFNOR ambient temperature profiles, from single-use parcel shippers to reusable pallet systems.
From parcel to pallet
+25 °C to < −60 °C
24 h to 120 h+
ISTA & AFNOR
24–120 h
1.3–70 l
12 sizes
Water-based / seasonal
72–144 h
5–64 l
10 sizes
PCM / year-round packout
24–48 h
6–18 l
2 sizes
PCM
72–96 h
9–70 l
5 sizes
Water-based / seasonal
72–120 h
12 l
1 size
PCM

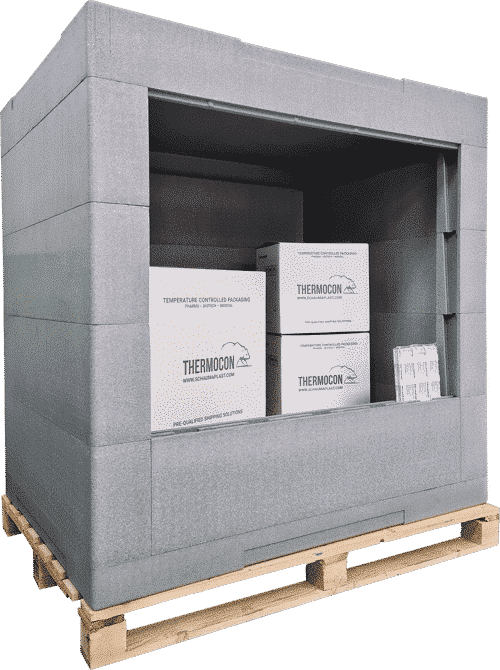

High-capacity thermal packaging for pallet transport – modular adjustment using extension frames.
60–120 h
24–1,210 l
11 sizes
Water-based / seasonal
Our standard THERMOCON coolant pack fits a wide range of sizes and solutions across product lines.

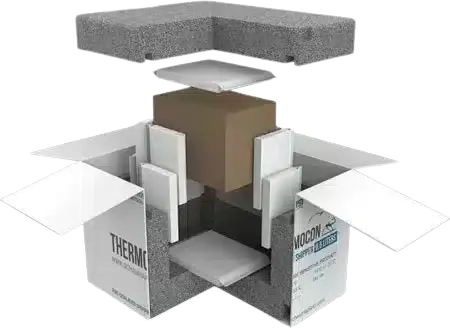

CLASSIC LINE
PALLET LINE
MEDI LINE
PAPER LINE
Procurement & stockholding
Variants to manage
Flexibility in everyday use
THERMOCON standard coolant packs: same size, same performance – compatible with 30 systems.

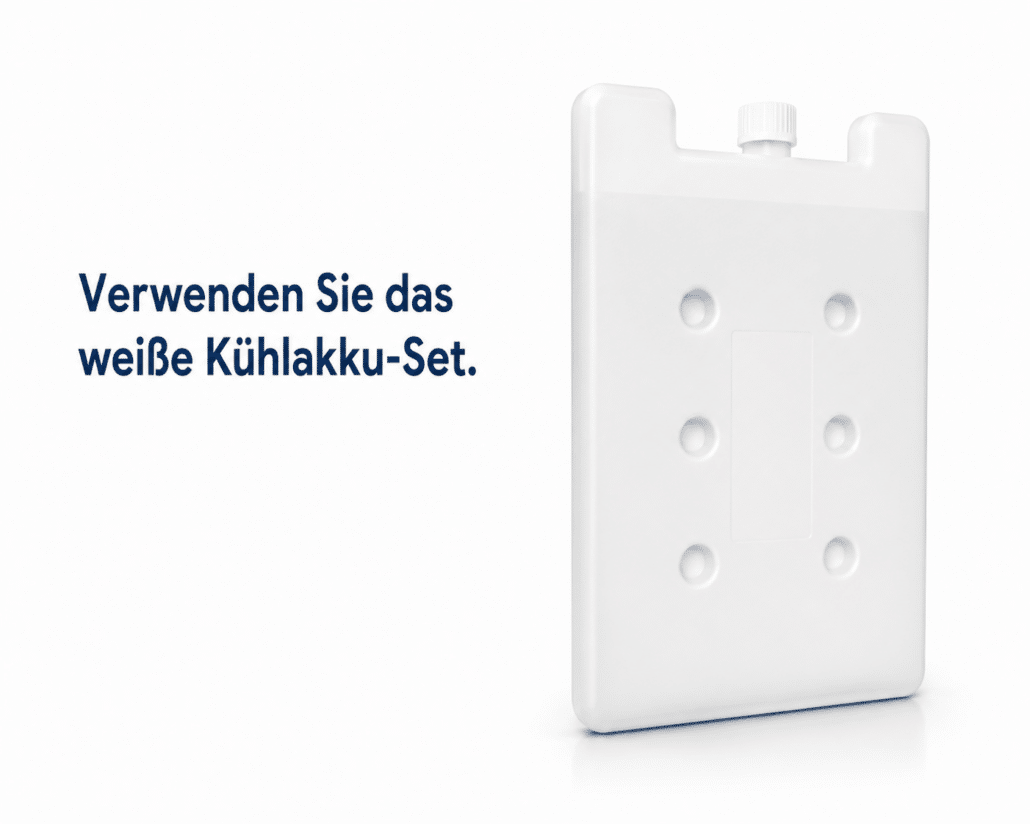

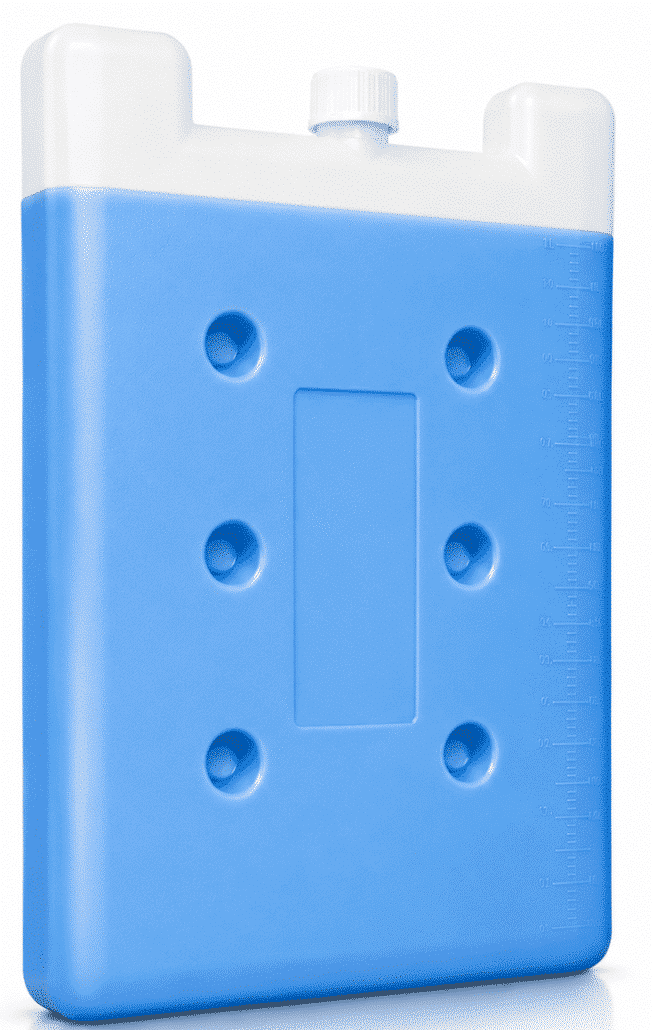

Reusable hard-shell coolant pack or single-use foam brick.
In most pre-qualified THERMOCON systems, the same basic shipper can be used for different temperature ranges – simply by changing the coolant pack set.

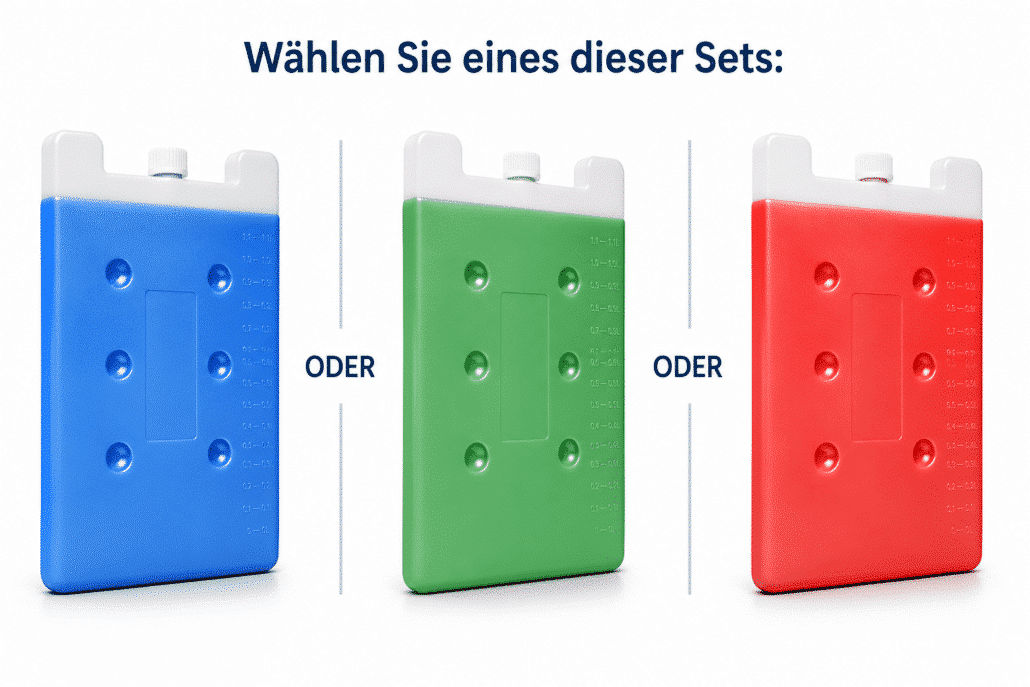

Use one of the following sets:
Use one of these sets:
The basic shippers used in all THERMOCON systems are pre-qualified for multiple temperature ranges. This reduces complexity, stockholding, procurement and handling effort.
The transport type affects shipper format, packout, handling, temperature profile, hold time margin, freight costs and risk. Selection should therefore take account of the shipping route as well as the temperature range.
Pre-qualified systems for parcel shipping need to combine thermal performance, ease of handling and cost-effectiveness. Key factors are a repeatable packout, clearly defined conditioning and a system size suited to the payload, hold time and shipping process.
24–120 h
1.3–70 l
12 sizes
Water-based / seasonal
72–144 h
5–64 l
10 sizes
PCM / year-round packout
24–48 h
6–18 l
2 sizes
PCM / year-round packout
72–96 h
9–70 l
5 sizes
Water-based / seasonal
72–120 h
12 l
1 size
PCM / year-round packout
Pallet shippers can be a suitable choice for larger shipment volumes, air freight or international pharmaceutical shipping lanes. Key considerations are hold times, payload volume, freight costs and product value.
High-capacity thermal packaging for pallet transport – modular adjustment using extension frames.
60–120 h
24–1,210 l
11 sizes
Water-based / seasonal
Reusable systems suit recurring transport processes that can be controlled. Key considerations are return logistics, cleaning, handling, total cost of ownership (TCO) and whether the transport process is sufficiently predictable.
72–144 h
5–64 l
10 sizes
PCM / year-round packout
24–48 h
6–18 l
2 sizes
PCM / year-round packout
72–120 h
12 l
1 size
PCM / year-round packout
Wählen Sie zunächst den gewünschten Temperaturbereich. Anschließend grenzen Sie Produktlinie, Kühlmittel und Nutzungskonzept ein.
Temperaturbereich wählen
Produktlinie, Kühlmittel & Nutzung eingrenzen

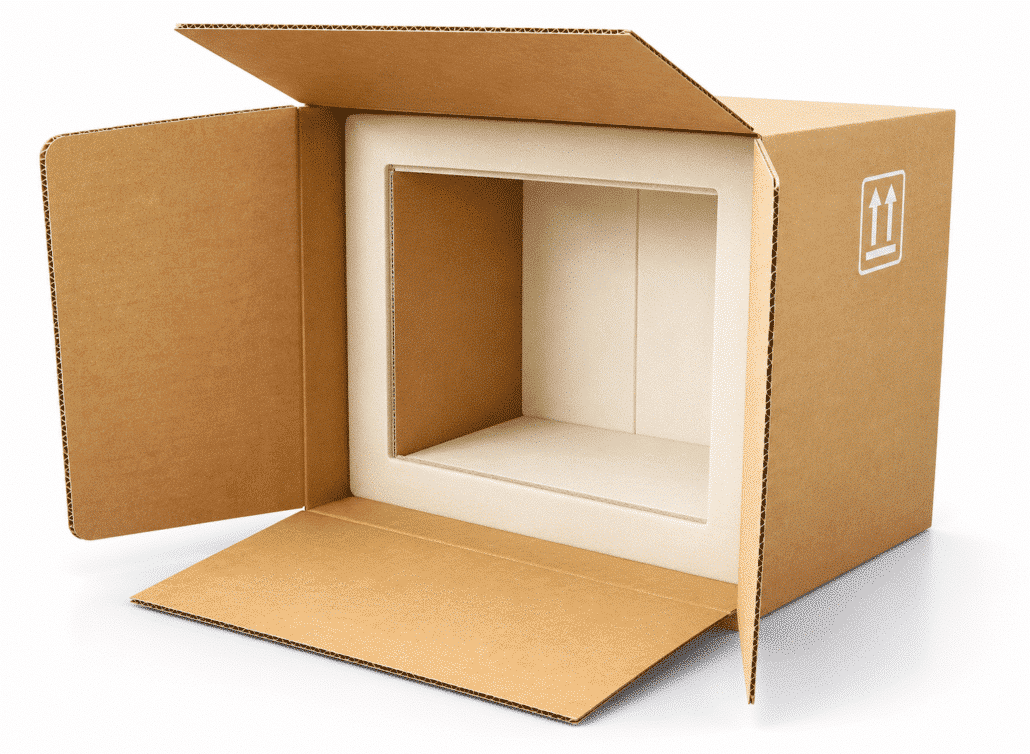

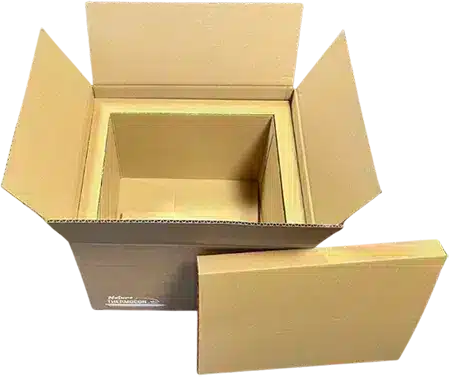

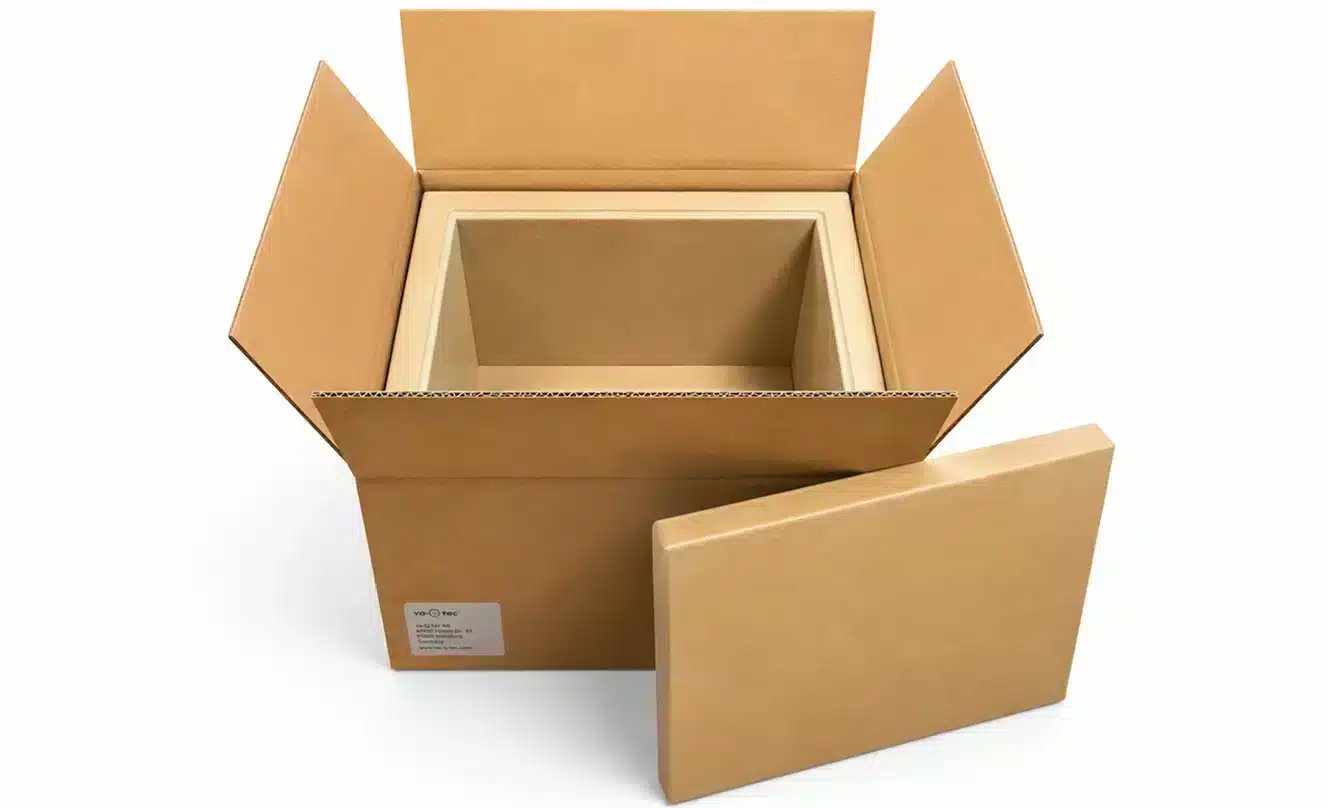

Paper Line
Vollständig recyclingfähige Thermoverpackung auf Papierbasis für temperaturgeführte Sendungen.

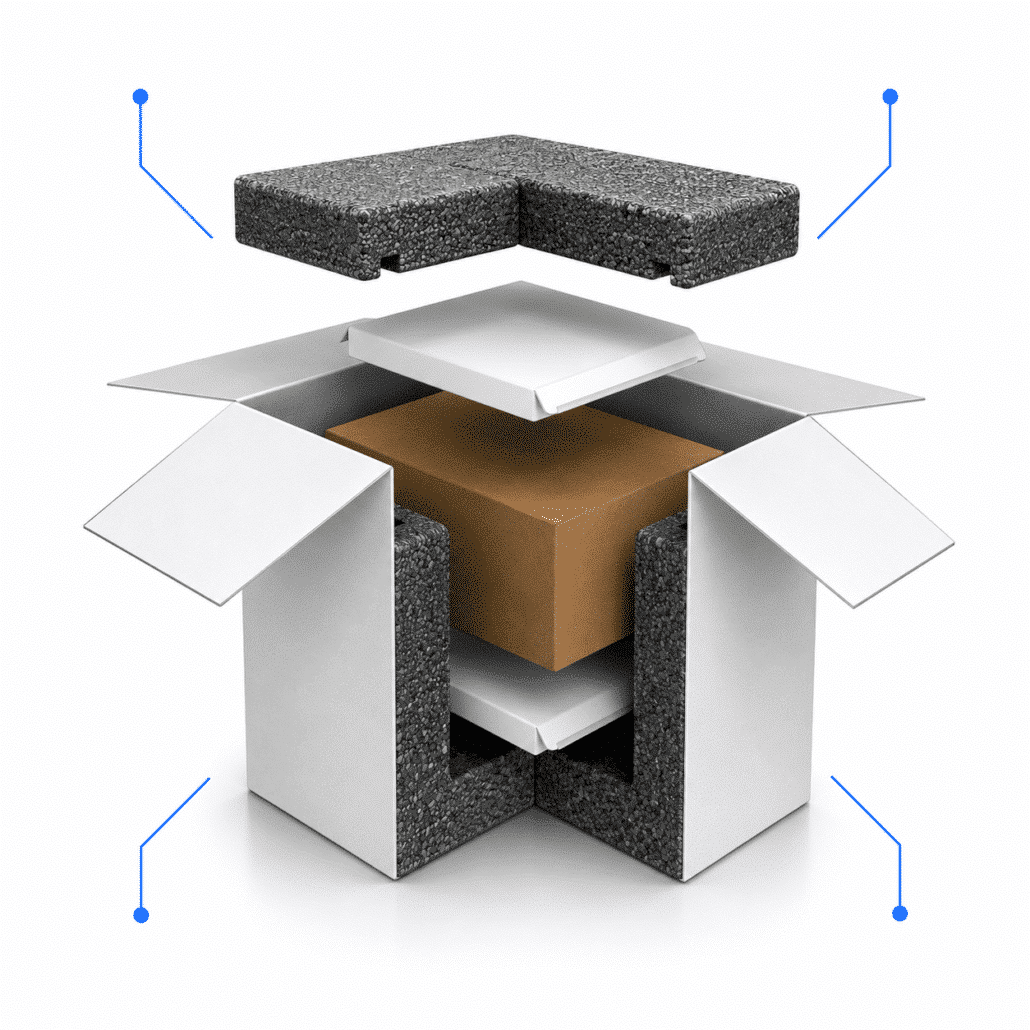

CLASSIC LINE

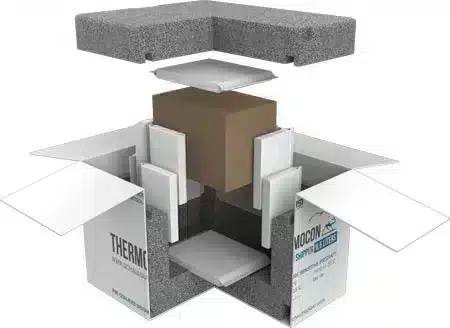

Kostenorientierte Einweglösung aus EPS für temperaturgeführte Sendungen. Effizient, leicht und ideal für pharmazeutische Produkte und Life-Science-Anwendungen.

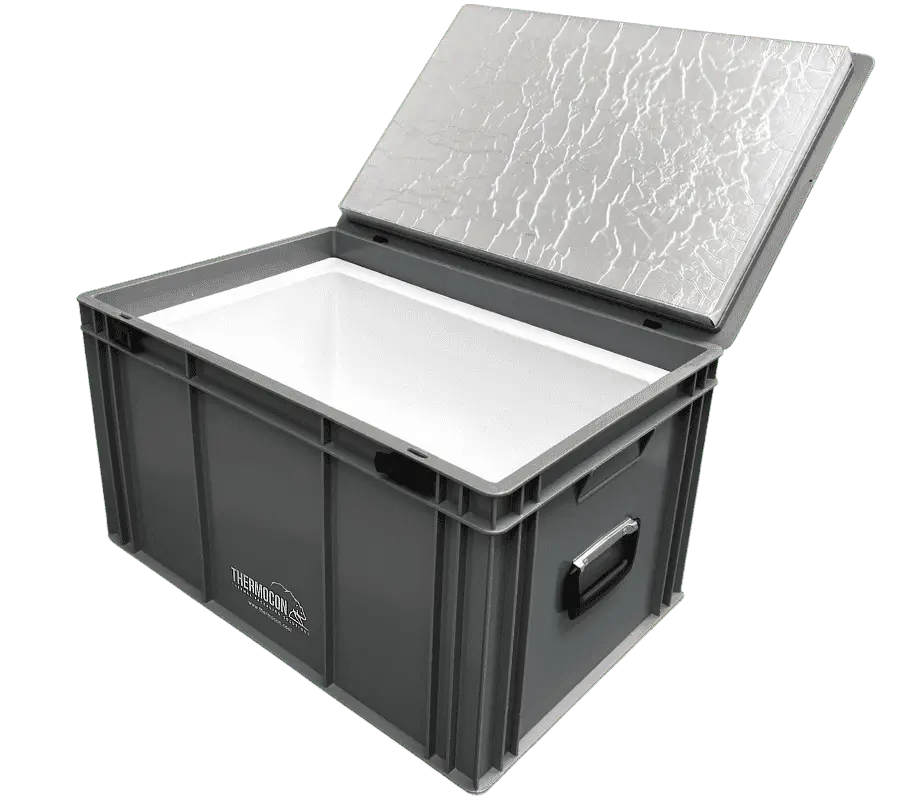

MEDI LINE
Mehrwegsystem für kurze Transitzeiten von 24 bis 48 Stunden. Ausgelegt auf hohe Umlaufzahlen im Apotheken- und Klinikversand.

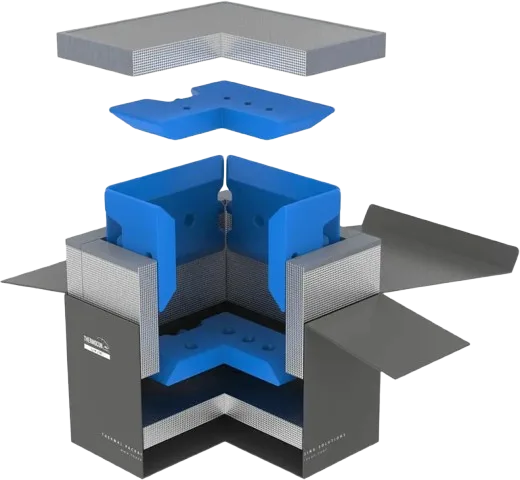

SLIM LINE
Vakuumisolierte Mehrweglösung für lange Transitzeiten ab 96 Stunden. Maximale Isolierleistung bei geringem Aufbauvolumen.
PALLET LINE
Thermoverpackung im Palettenformat für den Versand ganzer Europaletten. Ausgelegt auf Großmengen im Pharma- und Biotech-Transport.

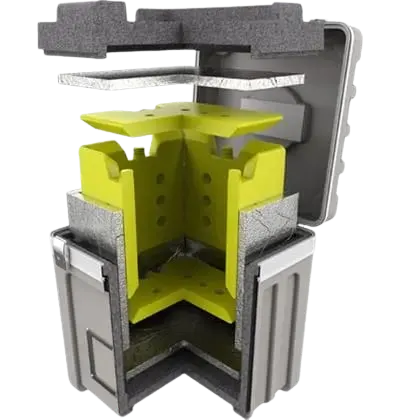

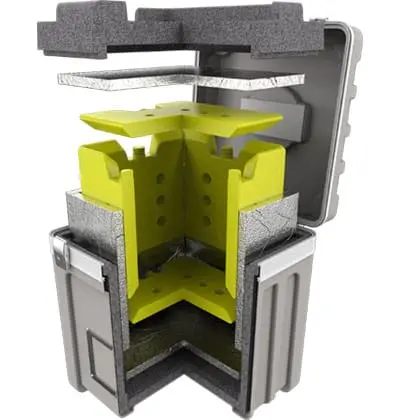

PREMIUM BOX
Hochwertiger Mehrwegkoffer mit Vakuumisolierung für sensible Sendungen mit repräsentativem Anspruch.
Laufzeit-Kategorie
Weitere Filter (optional)
Kühlmittel-Typ
Nutzungskonzept
Transportart
Passende Systeme
Angezeigte Artikel sind nach {pill} gefiltert und gehören zur Produktlinie {card}.
Mehrfachauswahl möglich: Haken Sie alle Produkte an, die für Sie infrage kommen, und fragen Sie sie mit einer einzigen Anfrage gemeinsam an.
| Auswahl | Aktion | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 1.3 | CLASSIC | 1.3 | EPS | Paketversand | Seasonal summer | Wasser | 36 h | 24 - 48 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 1.3 | CLASSIC | 1.3 | EPS | Paketversand | Seasonal winter | Wasser | 36 h+ | 24 - 48 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON CLASSIC 1.3 | CLASSIC | 1.3 | EPS | Paketversand | Seasonal summer | Wasser | 42 h+ | 24 - 48 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON CLASSIC 1.3 | CLASSIC | 1.3 | EPS | Paketversand | Seasonal winter | Wasser | 27 h | 24 - 48 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON CLASSIC 1.3 | CLASSIC | 1.3 | EPS | Paketversand | Universal | PCM | 20 h | 24 - 48 h | ||
| Frozen DI (< -15°C) | THERMOCON CLASSIC 1.3 | CLASSIC | 1.3 | EPS | Paketversand | Universal | Trockeneis | 65 h | 48 - 72 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 2.2 | CLASSIC | 2.2 | EPS | Paketversand | Seasonal summer | Wasser | 24 h | 24 - 48 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 2.2 | CLASSIC | 2.2 | EPS | Paketversand | Seasonal winter | Wasser | 48 h | 24 - 48 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON CLASSIC 2.2 | CLASSIC | 2.2 | EPS | Paketversand | Seasonal summer | Wasser | 25 h | 24 - 48 h | ||
| Frozen DI (< -15°C) | THERMOCON CLASSIC 2.2 | CLASSIC | 2.2 | EPS | Paketversand | Universal | Trockeneis | 46 h | 24 - 48 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 4.8 | CLASSIC | 4.8 | EPS | Paketversand | Seasonal summer | Wasser | 48 h | 24 - 48 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 4.8 | CLASSIC | 4.8 | EPS | Paketversand | Seasonal winter | Wasser/PCM | 96 h | 96 - 120 h | ||
| Frozen DI (< -15°C) | THERMOCON CLASSIC 4.8 | CLASSIC | 4.8 | EPS | Paketversand | Universal | Trockeneis | 72 h | 72 - 96 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 5.0 | CLASSIC | 5 | EPS | Paketversand | Seasonal summer | Wasser | 30 h | 24 - 48 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 5.0 | CLASSIC | 5 | EPS | Paketversand | Seasonal winter | Wasser | 48 h | 24 - 48 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 5.0 | CLASSIC | 5 | EPS | Paketversand | Seasonal summer | Wasser/PCM | 46 h | 24 - 48 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 5.0 | CLASSIC | 5 | EPS | Paketversand | Seasonal winter | Wasser/PCM | 48 h | 24 - 48 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON CLASSIC 5.0 | CLASSIC | 5 | EPS | Paketversand | Seasonal summer | Wasser | 26 h | 24 - 48 h | ||
| Frozen DI (< -15°C) | THERMOCON CLASSIC 5.0 | CLASSIC | 5 | EPS | Paketversand | Universal | Trockeneis | 40 h | 24 - 48 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 6.0 | CLASSIC | 6 | EPS | Paketversand | Seasonal summer | Wasser | 52 h | 48 - 72 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 6.0 | CLASSIC | 6 | EPS | Paketversand | Seasonal winter | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON CLASSIC 6.0 | CLASSIC | 6 | EPS | Paketversand | Seasonal summer | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON CLASSIC 6.0 | CLASSIC | 6 | EPS | Paketversand | Seasonal winter | PCM | 75 h | 72 - 96 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON CLASSIC 6.0 | CLASSIC | 6 | EPS | Paketversand | Universal | PCM | 24 h | 24 - 48 h | ||
| Frozen DI (< -15°C) | THERMOCON CLASSIC 6.0 | CLASSIC | 6 | EPS | Paketversand | Universal | Trockeneis | 98 h | 96 - 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 6.5 | CLASSIC | 6.5 | EPS | Paketversand | Seasonal summer | Wasser | 73 h | 72 - 96 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 6.5 | CLASSIC | 6.5 | EPS | Paketversand | Seasonal winter | Wasser | 120 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 6.5 | CLASSIC | 6.5 | EPS | Paketversand | Universal | Wasser/PCM | 98 h | 96 - 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON CLASSIC 6.5 | CLASSIC | 6.5 | EPS | Paketversand | Seasonal summer | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON CLASSIC 6.5 | CLASSIC | 6.5 | EPS | Paketversand | Seasonal winter | Wasser/PCM | 120 h+ | > 120 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON CLASSIC 6.5 | CLASSIC | 6.5 | EPS | Paketversand | Universal | PCM | 85 h | 72 - 96 h | ||
| Frozen DI (< -15°C) | THERMOCON CLASSIC 6.5 | CLASSIC | 6.5 | EPS | Paketversand | Universal | Trockeneis | 120 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 7.7 | CLASSIC | 7.7 | EPS | Paketversand | Seasonal summer | Wasser | 64 h | 48 - 72 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 7.7 | CLASSIC | 7.7 | EPS | Paketversand | Seasonal winter | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON CLASSIC 7.7 | CLASSIC | 7.7 | EPS | Paketversand | Seasonal summer | Wasser | 120 h+ | > 120 h | ||
| Frozen DI (< -15°C) | THERMOCON CLASSIC 7.7 | CLASSIC | 7.7 | EPS | Paketversand | Universal | Trockeneis | 88 h | 72 - 96 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 15 | CLASSIC | 15 | EPS | Paketversand | Seasonal summer | Wasser | 79 h | 72 - 96 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 15 | CLASSIC | 15 | EPS | Paketversand | Seasonal winter | Wasser | 120 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 15 | CLASSIC | 15 | EPS | Paketversand | Universal | Wasser/PCM | 108 h | 96 - 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON CLASSIC 15 | CLASSIC | 15 | EPS | Paketversand | Seasonal summer | Wasser | 151 h | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON CLASSIC 15 | CLASSIC | 15 | EPS | Paketversand | Seasonal winter | Wasser/PCM | 120 h+ | > 120 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON CLASSIC 15 | CLASSIC | 15 | EPS | Paketversand | Universal | PCM | 97 h | 96 - 120 h | ||
| Frozen DI (< -15°C) | THERMOCON CLASSIC 15 | CLASSIC | 15 | EPS | Paketversand | Universal | Trockeneis | 120 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 15.5 | CLASSIC | 15.5 | EPS | Paketversand | Seasonal summer | Wasser | 84 h | 72 - 96 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 15.5 | CLASSIC | 15.5 | EPS | Paketversand | Seasonal winter | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON CLASSIC 15.5 | CLASSIC | 15.5 | EPS | Paketversand | Seasonal summer | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON CLASSIC 15.5 | CLASSIC | 15.5 | EPS | Paketversand | Seasonal winter | PCM | 110 h | 96 - 120 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON CLASSIC 15.5 | CLASSIC | 15.5 | EPS | Paketversand | Universal | PCM | 45 h | 24 - 48 h | ||
| Frozen DI (< -15°C) | THERMOCON CLASSIC 15.5 | CLASSIC | 15.5 | EPS | Paketversand | Universal | Trockeneis | 126 h | > 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 24 // HALF PALLET SHIPPER 24 | CLASSIC | 24 | EPS | Palettenversand | Seasonal summer | Wasser | 87 h | 72 - 96 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 24 // HALF PALLET SHIPPER 24 | CLASSIC | 24 | EPS | Palettenversand | Seasonal winter | Wasser | 95 h | 72 - 96 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON CLASSIC 24 // HALF PALLET SHIPPER 24 | CLASSIC | 24 | EPS | Palettenversand | Seasonal summer | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON CLASSIC 24 // HALF PALLET SHIPPER 24 | CLASSIC | 24 | EPS | Palettenversand | Seasonal winter | Wasser/PCM | 76 h | 72 - 96 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON CLASSIC 24 // HALF PALLET SHIPPER 24 | CLASSIC | 24 | EPS | Palettenversand | Universal | PCM | 52 h | 48 - 72 h | ||
| Frozen DI (< -15°C) | THERMOCON CLASSIC 24 // HALF PALLET SHIPPER 24 | CLASSIC | 24 | EPS | Palettenversand | Universal | Trockeneis | 120 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 53 // HALF PALLET SHIPPER 53 | CLASSIC | 53 | EPS | Palettenversand | Seasonal summer | Wasser | 120 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 53 // HALF PALLET SHIPPER 53 | CLASSIC | 53 | EPS | Palettenversand | Seasonal winter | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON CLASSIC 53 // HALF PALLET SHIPPER 53 | CLASSIC | 53 | EPS | Palettenversand | Seasonal summer | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON CLASSIC 53 // HALF PALLET SHIPPER 53 | CLASSIC | 53 | EPS | Palettenversand | Seasonal winter | Wasser/PCM | 120 h+ | > 120 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON CLASSIC 53 // HALF PALLET SHIPPER 53 | CLASSIC | 53 | EPS | Palettenversand | Universal | PCM | 61 h | 48 - 72 h | ||
| Frozen DI (< -15°C) | THERMOCON CLASSIC 53 // HALF PALLET SHIPPER 53 | CLASSIC | 53 | EPS | Palettenversand | Universal | Trockeneis | 192 h | > 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 70 // HALF PALLET SHIPPER 70 | CLASSIC | 70 | EPS | Palettenversand | Seasonal summer | Wasser | 120 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON CLASSIC 70 // HALF PALLET SHIPPER 70 | CLASSIC | 70 | EPS | Palettenversand | Seasonal winter | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON CLASSIC 70 // HALF PALLET SHIPPER 70 | CLASSIC | 70 | EPS | Palettenversand | Seasonal summer | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON CLASSIC 70 // HALF PALLET SHIPPER 70 | CLASSIC | 70 | EPS | Palettenversand | Seasonal winter | Wasser/PCM | 64 h | 48 - 72 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON CLASSIC 70 // HALF PALLET SHIPPER 70 | CLASSIC | 70 | EPS | Palettenversand | Universal | PCM | 60 h | 48 - 72 h | ||
| Frozen DI (< -15°C) | THERMOCON CLASSIC 70 // HALF PALLET SHIPPER 70 | CLASSIC | 70 | EPS | Palettenversand | Universal | Trockeneis | 120 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | EURO PALLET SHIPPER 150 | PALLET | 150 | EPS | Palettenversand | Seasonal summer | Wasser | 120 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | EURO PALLET SHIPPER 150 | PALLET | 150 | EPS | Palettenversand | Seasonal winter | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | EURO PALLET SHIPPER 150 | PALLET | 150 | EPS | Palettenversand | Seasonal summer | Wasser | 120 h+ | > 120 h | ||
| Frozen DI (< -15°C) | EURO PALLET SHIPPER 150 | PALLET | 150 | EPS | Palettenversand | Universal | Trockeneis | 120 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | EURO PALLET SHIPPER 300 | PALLET | 300 | EPS | Palettenversand | Seasonal summer | Wasser | 120 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | EURO PALLET SHIPPER 300 | PALLET | 300 | EPS | Palettenversand | Seasonal winter | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | EURO PALLET SHIPPER 300 | PALLET | 300 | EPS | Palettenversand | Seasonal summer | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | EURO PALLET SHIPPER 300 | PALLET | 300 | EPS | Palettenversand | Seasonal winter | Wasser/PCM | 120 h+ | > 120 h | ||
| Frozen DI (< -15°C) | EURO PALLET SHIPPER 300 | PALLET | 300 | EPS | Palettenversand | Universal | Trockeneis | 120 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | EURO PALLET SHIPPER 445 | PALLET | 445 | EPS | Palettenversand | Seasonal summer | Wasser | 113 h | 96 - 120 h | ||
| Cold (+2 bis +8°C) | EURO PALLET SHIPPER 445 | PALLET | 445 | EPS | Palettenversand | Seasonal winter | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | EURO PALLET SHIPPER 445 | PALLET | 445 | EPS | Palettenversand | Seasonal summer | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | EURO PALLET SHIPPER 445 | PALLET | 445 | EPS | Palettenversand | Seasonal winter | Wasser/PCM | 72 h | 48 - 72 h | ||
| Frozen DI (< -15°C) | EURO PALLET SHIPPER 445 | PALLET | 445 | EPS | Palettenversand | Universal | Trockeneis | 120 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | EURO PALLET SHIPPER 590 | PALLET | 590 | EPS | Palettenversand | Seasonal summer | Wasser | 111 h | 96 - 120 h | ||
| Cold (+2 bis +8°C) | EURO PALLET SHIPPER 590 | PALLET | 590 | EPS | Palettenversand | Seasonal winter | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | EURO PALLET SHIPPER 590 | PALLET | 590 | EPS | Palettenversand | Seasonal summer | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | EURO PALLET SHIPPER 590 | PALLET | 590 | EPS | Palettenversand | Seasonal winter | Wasser/PCM | 113 h | 96 - 120 h | ||
| Frozen DI (< -15°C) | EURO PALLET SHIPPER 590 | PALLET | 590 | EPS | Palettenversand | Universal | Trockeneis | 108 h | 96 - 120 h | ||
| Cold (+2 bis +8°C) | PALLET TRANSPORTER 610 | PALLET | 610 | EPS | Palettenversand | Seasonal summer | Wasser | 112 h | 96 - 120 h | ||
| Cold (+2 bis +8°C) | PALLET TRANSPORTER 610 | PALLET | 610 | EPS | Palettenversand | Seasonal winter | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | PALLET TRANSPORTER 610 | PALLET | 610 | EPS | Palettenversand | Seasonal summer | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | PALLET TRANSPORTER 610 | PALLET | 610 | EPS | Palettenversand | Seasonal winter | Wasser/PCM | 88 h | 72 - 96 h | ||
| Frozen PCM (-25 bis -15°C) | PALLET TRANSPORTER 610 | PALLET | 610 | EPS | Palettenversand | Universal | PCM | 54 h | 48 - 72 h | ||
| Frozen DI (< -15°C) | PALLET TRANSPORTER 610 | PALLET | 610 | EPS | Palettenversand | Universal | Trockeneis | 120 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | PALLET TRANSPORTER 910 | PALLET | 910 | EPS | Palettenversand | Seasonal summer | Wasser | 102 h | 96 - 120 h | ||
| Cold (+2 bis +8°C) | PALLET TRANSPORTER 910 | PALLET | 910 | EPS | Palettenversand | Seasonal winter | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | PALLET TRANSPORTER 910 | PALLET | 910 | EPS | Palettenversand | Seasonal summer | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | PALLET TRANSPORTER 910 | PALLET | 910 | EPS | Palettenversand | Seasonal winter | PCM | 120 h+ | > 120 h | ||
| Frozen PCM (-25 bis -15°C) | PALLET TRANSPORTER 910 | PALLET | 910 | EPS | Palettenversand | Universal | PCM | 65 h | 48 - 72 h | ||
| Frozen DI (< -15°C) | PALLET TRANSPORTER 910 | PALLET | 910 | EPS | Palettenversand | Universal | Trockeneis | 120 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | PALLET TRANSPORTER 1210 | PALLET | 1210 | EPS | Palettenversand | Seasonal summer | Wasser | 119 h | 96 - 120 h | ||
| Cold (+2 bis +8°C) | PALLET TRANSPORTER 1210 | PALLET | 1210 | EPS | Palettenversand | Seasonal winter | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | PALLET TRANSPORTER 1210 | PALLET | 1210 | EPS | Palettenversand | Seasonal summer | Wasser | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | PALLET TRANSPORTER 1210 | PALLET | 1210 | EPS | Palettenversand | Seasonal winter | PCM | 110 h | 96 - 120 h | ||
| Frozen PCM (-25 bis -15°C) | PALLET TRANSPORTER 1210 | PALLET | 1210 | EPS | Palettenversand | Universal | PCM | 56 h | 48 - 72 h | ||
| Frozen DI (< -15°C) | PALLET TRANSPORTER 1210 | PALLET | 1210 | EPS | Palettenversand | Universal | Trockeneis | 120 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON SLIM LINE 5 | SLIM | 5 | VIP | Paketversand | Universal | PCM | 107 h+ | 96 - 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON SLIM LINE 5 | SLIM | 5 | VIP | Paketversand | Universal | PCM | 167 h+ | > 120 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON SLIM LINE 5 | SLIM | 5 | VIP | Paketversand | Universal | PCM | 156 h+ | > 120 h | ||
| Frozen DI (< -15°C) | THERMOCON SLIM LINE 5 | SLIM | 5 | VIP | Paketversand | Universal | Trockeneis | 168 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON SLIM LINE 7 | SLIM | 7 | VIP | Paketversand | Universal | PCM | 80 h+ | 72 - 96 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON SLIM LINE 7 | SLIM | 7 | VIP | Paketversand | Universal | PCM | 126 h+ | > 120 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON SLIM LINE 7 | SLIM | 7 | VIP | Paketversand | Universal | PCM | 66 h+ | 48 - 72 h | ||
| Frozen DI (< -15°C) | THERMOCON SLIM LINE 7 | SLIM | 7 | VIP | Paketversand | Universal | Trockeneis | 113 h+ | 96 - 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON SLIM LINE 10 | SLIM | 10 | VIP | Paketversand | Universal | PCM | 128 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON SLIM LINE 10 | SLIM | 10 | VIP | Paketversand | Universal | PCM | 163 h+ | > 120 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON SLIM LINE 10 | SLIM | 10 | VIP | Paketversand | Universal | PCM | 119 h+ | 96 - 120 h | ||
| Frozen DI (< -15°C) | THERMOCON SLIM LINE 10 | SLIM | 10 | VIP | Paketversand | Universal | Trockeneis | 139 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON SLIM LINE 12 | SLIM | 12 | VIP | Paketversand | Universal | PCM | 98 h+ | 96 - 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON SLIM LINE 12 | SLIM | 12 | VIP | Paketversand | Universal | PCM | 144 h+ | > 120 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON SLIM LINE 12 | SLIM | 12 | VIP | Paketversand | Universal | PCM | 83 h+ | 72 - 96 h | ||
| Frozen DI (< -15°C) | THERMOCON SLIM LINE 12 | SLIM | 12 | VIP | Paketversand | Universal | Trockeneis | 122 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON SLIM LINE 15 | SLIM | 15 | VIP | Paketversand | Universal | PCM | 120 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON SLIM LINE 15 | SLIM | 15 | VIP | Paketversand | Universal | PCM | 155 h+ | > 120 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON SLIM LINE 15 | SLIM | 15 | VIP | Paketversand | Universal | PCM | 108 h+ | 96 - 120 h | ||

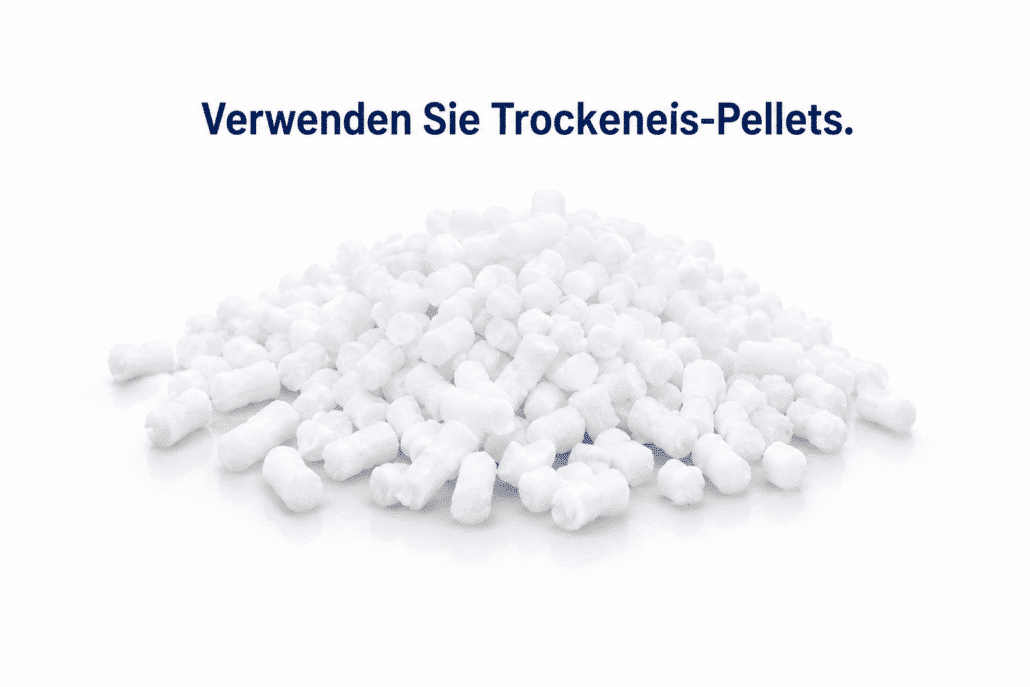

| Frozen DI (< -15°C) | THERMOCON SLIM LINE 15 | SLIM | 15 | VIP | Paketversand | Universal | Trockeneis | 168 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON SLIM LINE 20 | SLIM | 20 | VIP | Paketversand | Universal | PCM | 118 h+ | 96 - 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON SLIM LINE 20 | SLIM | 20 | VIP | Paketversand | Universal | PCM | 160 h+ | > 120 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON SLIM LINE 20 | SLIM | 20 | VIP | Paketversand | Universal | PCM | 110 h+ | 96 - 120 h | ||
| Frozen DI (< -15°C) | THERMOCON SLIM LINE 20 | SLIM | 20 | VIP | Paketversand | Universal | Trockeneis | 130 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON SLIM LINE 27 | SLIM | 27 | VIP | Paketversand | Universal | PCM | 136 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON SLIM LINE 27 | SLIM | 27 | VIP | Paketversand | Universal | PCM | 168 h+ | > 120 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON SLIM LINE 27 | SLIM | 27 | VIP | Paketversand | Universal | PCM | 116 h+ | 96 - 120 h | ||
| Frozen DI (< -15°C) | THERMOCON SLIM LINE 27 | SLIM | 27 | VIP | Paketversand | Universal | Trockeneis | 161 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON SLIM LINE 36 | SLIM | 36 | VIP | Paketversand | Universal | PCM | 152 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON SLIM LINE 36 | SLIM | 36 | VIP | Paketversand | Universal | PCM | 169 h+ | > 120 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON SLIM LINE 36 | SLIM | 36 | VIP | Paketversand | Universal | PCM | 139 h+ | > 120 h | ||
| Frozen DI (< -15°C) | THERMOCON SLIM LINE 36 | SLIM | 36 | VIP | Paketversand | Universal | Trockeneis | 138 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON SLIM LINE 48 | SLIM | 48 | VIP | Paketversand | Universal | PCM | 152 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON SLIM LINE 48 | SLIM | 48 | VIP | Paketversand | Universal | PCM | 169 h+ | > 120 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON SLIM LINE 48 | SLIM | 48 | VIP | Paketversand | Universal | PCM | 161 h+ | > 120 h | ||
| Frozen DI (< -15°C) | THERMOCON SLIM LINE 48 | SLIM | 48 | VIP | Paketversand | Universal | Trockeneis | 161 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON SLIM LINE 64 | SLIM | 64 | VIP | Paketversand | Universal | PCM | 142 h+ | > 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON SLIM LINE 64 | SLIM | 64 | VIP | Paketversand | Universal | PCM | 169 h+ | > 120 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON SLIM LINE 64 | SLIM | 64 | VIP | Paketversand | Universal | PCM | 127 h+ | > 120 h | ||
| Frozen DI (< -15°C) | THERMOCON SLIM LINE 64 | SLIM | 64 | VIP | Paketversand | Universal | Trockeneis | 110 h+ | 96 - 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON MEDI LINE MEDIUM | MEDI | 6 | VIP | Paketversand | Universal | PCM | 53 h+ | 48 - 72 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON MEDI LINE MEDIUM | MEDI | 6 | VIP | Paketversand | Universal | PCM | 91 h+ | 72 - 96 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON MEDI LINE MEDIUM | MEDI | 6 | VIP | Paketversand | Universal | PCM | 35 h+ | 24 - 48 h | ||
| Cold (+2 bis +8°C) | THERMOCON MEDI LINE LARGE | MEDI | 18 | VIP | Paketversand | Universal | PCM | 68 h+ | 48 - 72 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON MEDI LINE LARGE | MEDI | 18 | VIP | Paketversand | Universal | PCM | 91 h+ | 72 - 96 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON MEDI LINE LARGE | MEDI | 18 | VIP | Paketversand | Universal | PCM | 50 h+ | 48 - 72 h | ||
| Cold (+2 bis +8°C) | THERMOCON PREMIUM 12 | PREMIUM | 12 | VIP | Paketversand | Universal | PCM | 102 h+ | 96 - 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON PREMIUM 12 | PREMIUM | 12 | VIP | Paketversand | Universal | PCM | 72 h+ | 48 - 72 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON PREMIUM 12 | PREMIUM | 12 | VIP | Paketversand | Universal | PCM | 72 h+ | 48 - 72 h | ||
| Cold (+2 bis +8°C) | THERMOCON PAPER 9 | PAPER | 9 | Papier | Paketversand | Seasonal summer | Wasser | 73 h+ | 72 - 96 h | ||
| Cold (+2 bis +8°C) | THERMOCON PAPER 9 | PAPER | 9 | Papier | Paketversand | Seasonal winter | Wasser | 99 h+ | 96 - 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON PAPER 9 | PAPER | 9 | Papier | Paketversand | Seasonal summer | Wasser | 74 h+ | 72 - 96 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON PAPER 9 | PAPER | 9 | Papier | Paketversand | Seasonal winter | PCM | 99 h+ | 96 - 120 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON PAPER 9 | PAPER | 9 | Papier | Paketversand | Universal | PCM | 44 h+ | 24 - 48 h | ||
| Frozen DI (< -15°C) | THERMOCON PAPER 9 | PAPER | 9 | Papier | Paketversand | Universal | Trockeneis | 108 h+ | 96 - 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON PAPER 13 | PAPER | 13 | Papier | Paketversand | Seasonal summer | Wasser | 82 h+ | 72 - 96 h | ||
| Cold (+2 bis +8°C) | THERMOCON PAPER 13 | PAPER | 13 | Papier | Paketversand | Seasonal winter | Wasser | 99 h+ | 96 - 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON PAPER 13 | PAPER | 13 | Papier | Paketversand | Seasonal summer | Wasser | 81 h+ | 72 - 96 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON PAPER 13 | PAPER | 13 | Papier | Paketversand | Seasonal winter | PCM | 80 h+ | 72 - 96 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON PAPER 13 | PAPER | 13 | Papier | Paketversand | Universal | PCM | 55 h+ | 48 - 72 h | ||
| Frozen DI (< -15°C) | THERMOCON PAPER 13 | PAPER | 13 | Papier | Paketversand | Universal | Trockeneis | 116 h+ | 96 - 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON PAPER 30 | PAPER | 30 | Papier | Palettenversand | Seasonal summer | Wasser | 75 h+ | 72 - 96 h | ||
| Cold (+2 bis +8°C) | THERMOCON PAPER 30 | PAPER | 30 | Papier | Palettenversand | Seasonal winter | Wasser | 99 h+ | 96 - 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON PAPER 30 | PAPER | 30 | Papier | Palettenversand | Seasonal summer | Wasser | 100 h+ | 96 - 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON PAPER 30 | PAPER | 30 | Papier | Palettenversand | Seasonal winter | PCM | 99 h+ | 96 - 120 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON PAPER 30 | PAPER | 30 | Papier | Palettenversand | Universal | PCM | 57 h+ | 48 - 72 h | ||
| Frozen DI (< -15°C) | THERMOCON PAPER 30 | PAPER | 30 | Papier | Palettenversand | Universal | Trockeneis | 132 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON PAPER 53 | PAPER | 53 | Papier | Palettenversand | Seasonal summer | Wasser | 83 h+ | 72 - 96 h | ||
| Cold (+2 bis +8°C) | THERMOCON PAPER 53 | PAPER | 53 | Papier | Palettenversand | Seasonal winter | Wasser | 99 h+ | 96 - 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON PAPER 53 | PAPER | 53 | Papier | Palettenversand | Seasonal summer | Wasser | 79 h+ | 72 - 96 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON PAPER 53 | PAPER | 53 | Papier | Palettenversand | Seasonal winter | PCM | 72 h+ | 72 - 96 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON PAPER 53 | PAPER | 53 | Papier | Palettenversand | Universal | PCM | 54 h+ | 48 - 72 h | ||
| Frozen DI (< -15°C) | THERMOCON PAPER 53 | PAPER | 53 | Papier | Palettenversand | Universal | Trockeneis | 136 h+ | > 120 h | ||
| Cold (+2 bis +8°C) | THERMOCON PAPER 70 | PAPER | 70 | Papier | Palettenversand | Seasonal summer | Wasser | 78 h+ | 72 - 96 h | ||
| Cold (+2 bis +8°C) | THERMOCON PAPER 70 | PAPER | 70 | Papier | Palettenversand | Seasonal winter | Wasser | 99 h+ | 96 - 120 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON PAPER 70 | PAPER | 70 | Papier | Palettenversand | Seasonal summer | Wasser | 76 h+ | 72 - 96 h | ||
| Ambient / CRT (+15 bis +25°C) | THERMOCON PAPER 70 | PAPER | 70 | Papier | Palettenversand | Seasonal winter | PCM | 69 h+ | 48 - 72 h | ||
| Frozen PCM (-25 bis -15°C) | THERMOCON PAPER 70 | PAPER | 70 | Papier | Palettenversand | Universal | PCM | 46 h+ | 24 - 48 h | ||
| Frozen DI (< -15°C) | THERMOCON PAPER 70 | PAPER | 70 | Papier | Palettenversand | Universal | Trockeneis | 120 h+ | > 120 h |
Keine passenden Artikel für diese Auswahl gefunden. Passen Sie die Filter an.
Sie können mehrere Produkte gemeinsam anfragen.
Pre-qualification applies to the tested passive packaging configuration – not to the insulated shipper alone.
Climatic chamber testing under defined conditions
The system configuration maintains the specified temperature range for the stated hold time.
Pre-qualification uses standardised ISTA or AFNOR ambient temperature profiles as well as profiles representative of real-world conditions.
When the product, payload, route, hold time, packing process, coolant conditioning or temperature requirement changes.
Documented performance applies exclusively to the tested configuration and the
underlying test conditions. Suitability must be assessed for the specific application.
Pre-qualification applies to the tested passive packaging configuration – not to the insulated shipper alone.
Tested and documented performance data for a defined configuration and defined conditions.
The proposed packaging is assessed against the customer’s actual or representative conditions.
Thermal performance is demonstrated under conditions representative of the customer’s application.
The pre-qualified system meets the requirements in its existing configuration.
The positioning, number or conditioning of coolant packs is adjusted.
Bespoke thermal packaging is developed for the specific transport process.
Adapted to the seasonal temperature profile
24–120 h
1.3–70 l
12 sizes
Water-based / seasonal
72–96 h
9–70 l
5 sizes
Water-based / seasonal
High-capacity thermal packaging for pallet transport – modular adjustment using extension frames.
60–120 h
24–1,210 l
11 sizes
Water-based / seasonal
72–144 h
5–64 l
10 sizes
PCM / year-round packout
24–48 h
6–18 l
2 sizes
PCM
Premium transport case with vacuum insulation
72–120 h
12 l
1 size
PCM
The choice depends primarily on the predictability of ambient temperatures, process complexity and product criticality.
A seasonal packout is not inherently less safe when correctly selected and appropriately qualified. A universal packout, however, often reduces the risks associated with incorrect seasonal selection and unexpected ambient temperatures.
Pre-qualified thermal packaging has been tested as a defined system configuration in climatic chambers – with a specified packout, payload, conditioning, hold time and ambient temperature profile. Under these conditions, testing demonstrated that the temperature in the payload compartment remained within the defined target temperature range for the stated hold time.
Pre-qualified thermal packaging is not automatically suitable for every shipment. It demonstrates the thermal performance of a defined system configuration under specified test conditions. Before use, an assessment is needed to establish whether these conditions adequately represent the specific transport process. Customer-specific temperature data, route, payload or hold time may indicate that changes to the packaging system would be beneficial – for example, to the packout, coolant pack configuration or conditioning.
Yes, it can form part of documented GDP-compliant transport processes. Thermal packaging should be regarded as one element of the overall process. It cannot ensure GDP compliance on its own.
The hold time is the period for which a system remained within the specified temperature range under defined test conditions. Hold times cannot be compared reliably without information on the ambient temperature profile, payload, packout and conditioning.
Typical temperature ranges are +2 to +8 °C, +15 to +25 °C and -15 to -25 °C, alongside dry ice or deep-frozen applications. Bespoke PCM melting points, adapted packouts or customer-specific tests may be appropriate for special requirements.
A climatic chamber test is particularly appropriate when existing test data do not adequately represent the actual transport process, or when product value, product sensitivity, route, temperature requirements, payload, hold time or risk profile call for additional assurance. When qualifying thermal packaging for transport processes subject to GDP requirements, climatic chamber testing is one of the key methods for demonstrating thermal performance under defined or representative conditions. Depending on the application, several rounds of testing and optimisation may be necessary – for example, with different packouts, coolant pack configurations, conditioning procedures, payloads and ambient temperature profiles.
Do you already know the required temperature range, hold time, payload or transport type? THERMOCON can help you shortlist a suitable pre-qualified system and assess whether existing data are sufficient for your application or whether an adjustment would be beneficial.
You are currently viewing a placeholder content from Vimeo. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More InformationYou are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More InformationYou need to load content from reCAPTCHA to submit the form. Please note that doing so will share data with third-party providers.
More InformationYou are currently viewing a placeholder content from Mailchimp. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More InformationYou need to load content from hCaptcha to submit the form. Please note that doing so will share data with third-party providers.
More InformationYou need to load content from reCAPTCHA to submit the form. Please note that doing so will share data with third-party providers.
More InformationYou are currently viewing a placeholder content from Turnstile. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More Information
