THERMOCON Paper Line
Paper-based thermal packaging. Pre-qualified.
Paper Line combines paper insulation and a cardboard inner lining with pre-qualified packouts for pharma and biotech. Five system sizes from 9 to 70 litres are available for 2–8 °C, 15–25 °C and frozen applications.
Payload space
9–70 l
Thermally tested
ISTA 7E profiles
Cardboard inner lining
A professional finish, inside and out.
The payload space is fully lined with cardboard. Paper insulation sits behind smooth cardboard surfaces for a professional presentation when unpacking.
Paper Line 9, 13, 30, 53 and 70
Coolant pack for all five system sizes
Chilled, CRT and frozen
Recycle the paper box and insulation
Quick selection
Select Paper Line and send an enquiry.
Choose your system size, temperature range and required transit time. Select “Enquire about system” to transfer your choice directly to the product enquiry form.
Choose your size and shipping requirements. The corresponding tested duration will appear here.

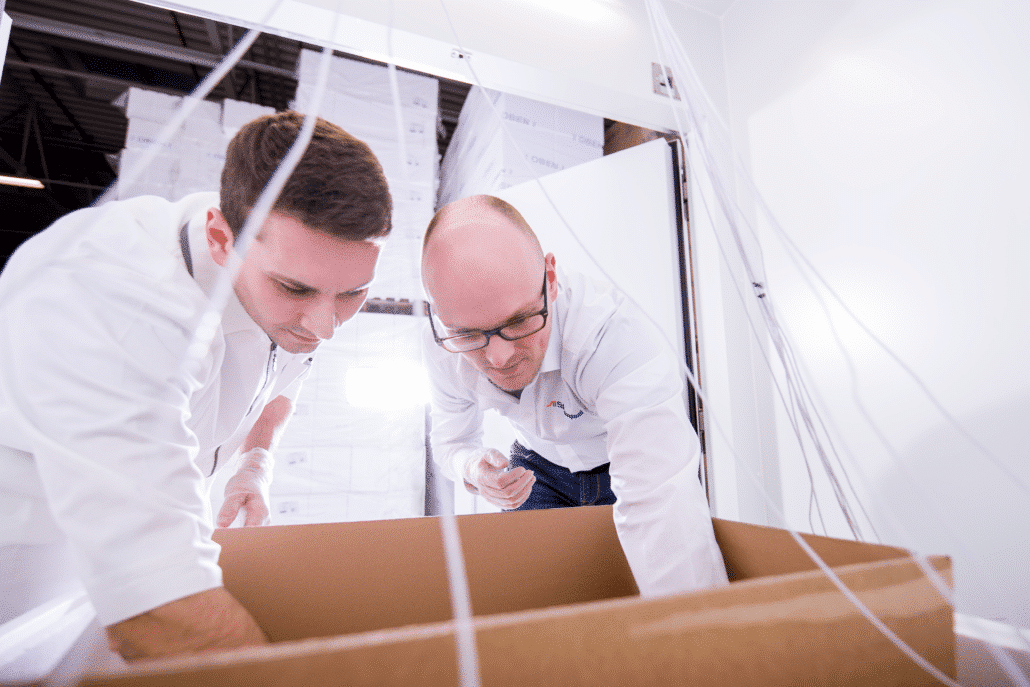

Climate chamber testing at THERMOCON: sensors measure the temperature in the payload space during the test profile.
Tested thermal performance
Tested with ISTA 7E temperature profiles.
We test the box, coolant packs and packout together in a climate chamber. The stated durations apply to the specific configuration and corresponding temperature profile.
ISTA 7E Heat and Cold profiles with defined ambient temperatures
Box, coolant pack type and quantity, arrangement, preconditioning and documented payload
Temperature hold time at the critical measurement point for the profile
Compare payload, starting temperature, transit time and ambient temperatures with the tested configuration
Material and disposal
Simply recycle the paper box and insulation with paper.
Paper Line makes disposal after cold chain shipping simple: place the outer carton, cardboard inner lining and paper insulation in paper recycling. Remove your goods, their packaging and the coolant packs first.
Empty the box
Remove the goods and their own packaging.
Remove coolant packs
Take out the coolant packs. See the relevant product information for reuse and disposal instructions.
Check the paper
Remove loose films from the box and panels.
Place paper in paper recycling
Place the box and paper panels in paper recycling.
Standard coolant pack for Paper Line
One standard coolant pack. All five sizes.
The standard THERMOCON coolant pack fits all five Paper Line sizes, as a Foam Brick or a hard-shell pack. Changing box size does not require a different coolant pack format.
Coolant pack
Foam Bricks
The foam core retains its shape even when frozen. As a Foam Brick, the standard THERMOCON coolant pack fits every Paper Line size.
Reusable coolant pack
Hard-shell coolant packs
The standard pack also fits every Paper Line size in its robust hard-shell version. Packs can be reused after inspection, cleaning and renewed preconditioning.
Tested configuration
Pack according to the packing instructions.
- Type and number of standard coolant packs
- Component arrangement and assembly
- Preconditioning temperature and duration
- Payload, starting conditions and measurement points
Sizes and minimum durations
Compare sizes and durations.
Compare payload volume, dimensions and the minimum durations achieved in climate chamber tests. The tables show results for the specific configuration and stated temperature profile.
Chilled · 2 to 8 °C
5 systems · Heat and Cold profiles| System | Nominal payload volume | Payload space L × W × H | External dimensions L × W × H | ISTA 7E Heat profile | ISTA 7E Cold profile | System selection |
|---|---|---|---|---|---|---|
| Paper Line 9 | 9 l | 280 × 210 × 160 mm | 505 × 465 × 360 mm | ≥ 73 h | ≥ 96 h | Enquire about Paper Line 9 for 2–8 °C |
| Paper Line 13 | 13 l | 320 × 220 × 190 mm | 505 × 405 × 485 mm | ≥ 82 h | ≥ 96 h | Enquire about Paper Line 13 for 2–8 °C |
| Paper Line 30 | 30 l | 500 × 320 × 190 mm | 685 × 505 × 485 mm | ≥ 86 h | ≥ 96 h | Enquire about Paper Line 30 for 2–8 °C |
| Paper Line 53 | 53 l | 521 × 388 × 260 mm | 725 × 600 × 570 mm | ≥ 83 h | ≥ 96 h | Enquire about Paper Line 53 for 2–8 °C |
| Paper Line 70 | 70 l | 520 × 385 × 355 mm | 725 × 600 × 660 mm | ≥ 77 h | ≥ 96 h | Enquire about Paper Line 70 for 2–8 °C |
About the test profile: Heat and Cold represent defined ambient temperature profiles according to ISTA 7E. Duration is measured at the critical point within the payload space.
Durations apply to the tested packout. When selecting a system, we consider your payload, coolant preconditioning, transit time and ambient temperatures.
Controlled room temperature · 15 to 25 °C
5 systems · Heat and Cold profiles| System | Nominal payload volume | Payload space L × W × H | External dimensions L × W × H | ISTA 7E Heat profile | ISTA 7E Cold profile | System selection |
|---|---|---|---|---|---|---|
| Paper Line 9 | 9 l | 280 × 210 × 160 mm | 505 × 465 × 360 mm | ≥ 74 h | ≥ 96 h | Enquire about Paper Line 9 for 15–25 °C |
| Paper Line 13 | 13 l | 320 × 220 × 190 mm | 505 × 405 × 485 mm | ≥ 81 h | ≥ 96 h | Enquire about Paper Line 13 for 15–25 °C |
| Paper Line 30 | 30 l | 500 × 320 × 190 mm | 685 × 505 × 485 mm | ≥ 96 h | ≥ 96 h | Enquire about Paper Line 30 for 15–25 °C |
| Paper Line 53 | 53 l | 521 × 388 × 260 mm | 725 × 600 × 570 mm | ≥ 79 h | ≥ 72 h | Enquire about Paper Line 53 for 15–25 °C |
| Paper Line 70 | 70 l | 520 × 385 × 355 mm | 725 × 600 × 660 mm | ≥ 76 h | ≥ 72 h | Enquire about Paper Line 70 for 15–25 °C |
Controlled room temperature: The goods remain within 15–25 °C. Duration is measured at the critical measurement point in the climate chamber test.
Durations apply to the tested packout. When selecting a system, we consider your payload, coolant preconditioning, transit time and ambient temperatures.
Frozen · below −15 °C
5 systems · PCM or dry ice packouts| System | Nominal payload volume | Payload space L × W × H | External dimensions L × W × H | PCM · ISTA 7E Heat profile | Dry ice · ISTA 7E Heat profile | System selection |
|---|---|---|---|---|---|---|
| Paper Line 9 | 9 l | 280 × 210 × 160 mm | 505 × 465 × 360 mm | ≥ 44 h | ≥ 108 h | Enquire about Paper Line 9 for frozen shipping |
| Paper Line 13 | 13 l | 320 × 220 × 190 mm | 505 × 405 × 485 mm | ≥ 55 h | ≥ 116 h | Enquire about Paper Line 13 for frozen shipping |
| Paper Line 30 | 30 l | 500 × 320 × 190 mm | 685 × 505 × 485 mm | ≥ 58 h | ≥ 132 h | Enquire about Paper Line 30 for frozen shipping |
| Paper Line 53 | 53 l | 521 × 388 × 260 mm | 725 × 600 × 570 mm | ≥ 54 h | ≥ 136 h | Enquire about Paper Line 53 for frozen shipping |
| Paper Line 70 | 70 l | 520 × 385 × 355 mm | 725 × 600 × 660 mm | ≥ 46 h | ≥ 120 h | Enquire about Paper Line 70 for frozen shipping |
Paper Line 53 with dry ice: Under the ISTA 7E Heat profile, this packout maintains temperatures below −15 °C for at least 136 hours.
Durations apply to the specific PCM or dry ice configuration. Match the cooling method to your goods. For dry ice, follow the instructions on handling, ventilation, labelling and transport.
Quick answers
Frequently asked questions about Paper Line.
System components, temperature ranges, selection and disposal at a glance.
Paper Line combines a paper insulated box with a cardboard inner lining and a pre-qualified packout. Standard coolant packs or dry ice are used depending on the temperature requirement. The relevant packing instructions define the coolant, quantity, arrangement and preparation.
Yes. The standard THERMOCON coolant pack fits all five sizes from 9 to 70 litres and is available as a Foam Brick or hard-shell pack. The packing instructions specify the type, quantity, position and preconditioning for each packout.
Paper Line offers tested systems for 2–8 °C, controlled room temperature at 15–25 °C and frozen goods below −15 °C. Frozen applications are available with PCM coolant packs or dry ice packouts.
Choose one of the five system sizes from the dropdown, together with the temperature range and required transit time. The selector shows the tested minimum duration for your size. “Enquire about system” transfers the details to the form. If the stated duration is insufficient, we will advise you on a suitable alternative.
Remove the coolant packs, product packaging and loose films. The box, cardboard inner lining and paper panels can go into paper recycling. Follow the product-specific disposal instructions for the coolant packs.
