Pre-qualified single-use thermal packaging for pharma & biotech
Cost-effective complete systems. Lightweight EPS (expanded polystyrene) insulated shippers with 35% recycled content, standardised coolant packs and matched summer and winter packouts.
Available in twelve sizes with approximately 1.3 to 70 litres of payload space. Depending on the model, pre-qualified packout configurations are available for +2 to +8 °C, +15 to +25 °C and −15 to −25 °C, as well as for use with dry ice.
✓ lightweight✓ seasonal packouts✓ standard coolant packs
different shipper sizes
Seasonal coolant pack configurations
Payload space
pre-qualified temperature ranges
CLASSIC LINE · SYSTEM OVERVIEW
Classic Line systems at a glance
Twelve sizes for your shipments: compare payload space, external dimensions and pre-qualified hold times. Then select the configuration you would like to enquire about.
Dimensions: length × width × height · Approximate volumes and dimensions · Hold times depend on the packout
THERMOCON Classic 1.3
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | 1 day | 2 days |
| +2 to +8 °C | 1.5 days | 1.5 days |
| < -15°C | 2.5 days (dry ice) 1 day (PCM) | |

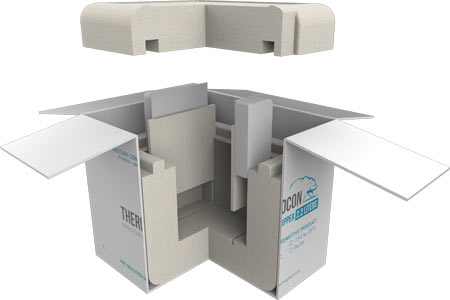

THERMOCON Classic 2.2
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | On request | 1 day |
| +2 to +8 °C | 2 days | 1 day |
| < -15°C | 2 days (dry ice) | |

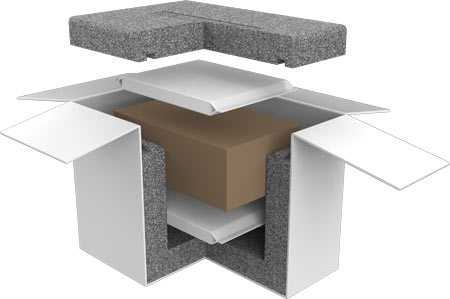

THERMOCON Classic 4.8
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | On request | On request |
| +2 to +8 °C | 4 days (PCM) | 2 days |
| < -15°C | 3 days (dry ice) | |

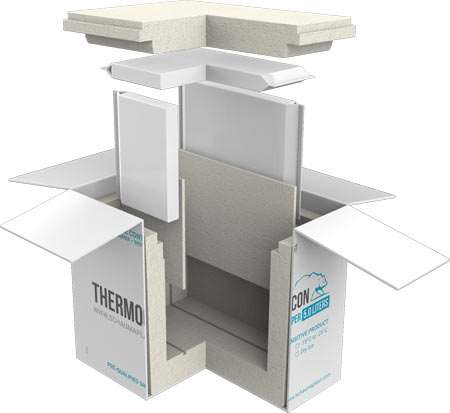

THERMOCON Classic 5.0
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | On request | 1 day |
| +2 to +8 °C [Pro version] | 2 days [2 days (PCM)] | 1.5 days [2 days (PCM)] |
| < -15°C | 1.5 days (dry ice) | |
THERMOCON Classic 6.0
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | 3 days (PCM) | 5 days |
| +2 to +8 °C | 5 days | 2.5 days |
| < -15°C | 4 days (dry ice) 1 day (PCM) | |

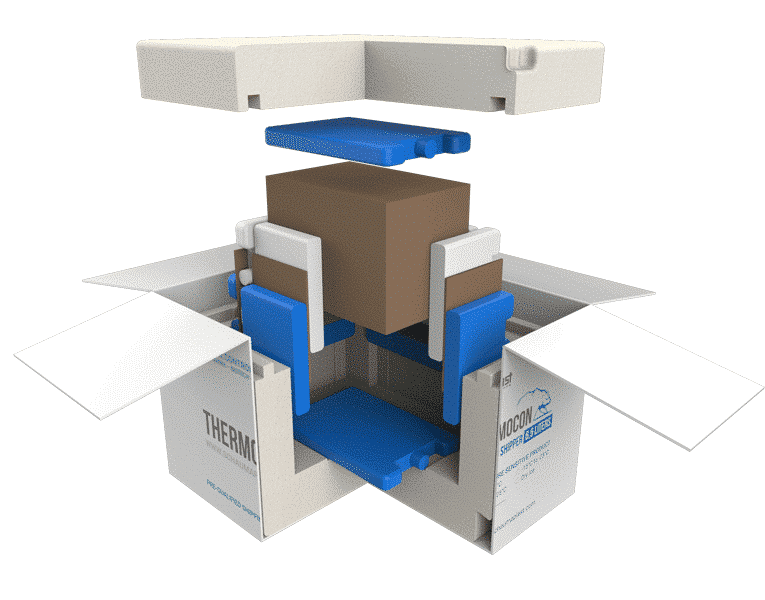

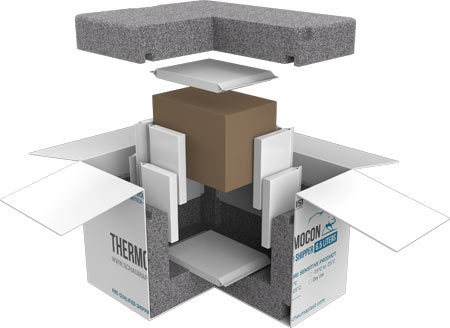

THERMOCON Classic 6.5
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | 5 days (PCM) | 5 days |
| +2 to +8 °C [Pro version] | 5 days [5 days (PCM)] | 3 days [4 days (PCM)] |
| < -15°C | 5 days (dry ice) 3.5 days (PCM) | |

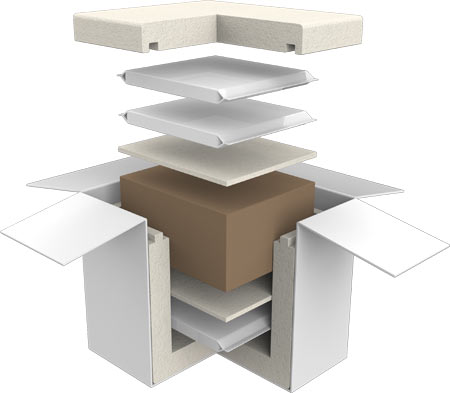

THERMOCON Classic 7.7
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | On request | 5 days |
| +2 to +8 °C | 5 days | 2.5 days |
| < -15°C | 3.5 days (dry ice) | |
THERMOCON Classic 15
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | 5 days (PCM) | 5 days |
| +2 to +8 °C [Pro version] | 5 days [5 days (PCM)] | 3 days [4.5 days (PCM)] |
| < -15°C | 5 days (dry ice) 4 days (PCM) | |

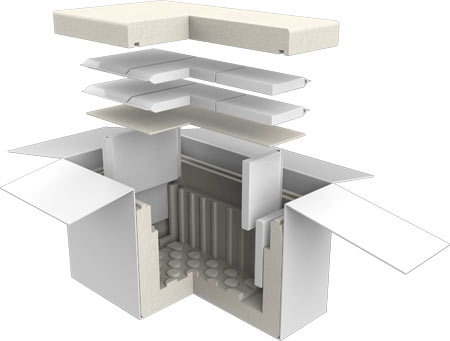

THERMOCON Classic 15.5
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | 5 days | 5 days |
| +2 to +8 °C | 5 days | 3.5 days |
| < -15°C | 2 days (PCM) | |

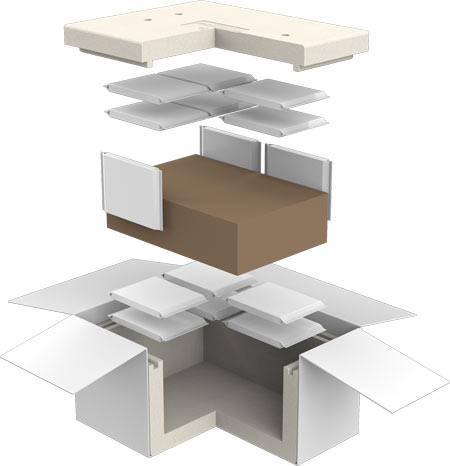

THERMOCON Classic 24
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | 3 days | 4 days |
| +2 to +8 °C | 4 days | 2.5 days |
| < -15°C | 5 days (dry ice) 2.5 days (PCM) | |

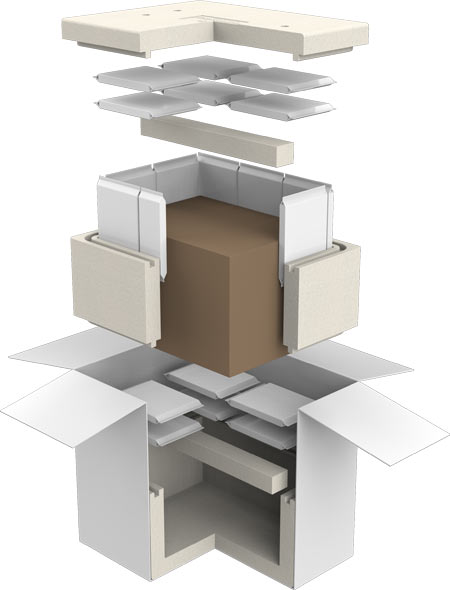

THERMOCON Classic 53
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | 5 days | 5 days |
| +2 to +8 °C | 5 days | 4.5 days |
| < -15°C | 5 days (dry ice) 2.5 days (PCM) | |
THERMOCON Classic 70
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | 2.5 days | 5 days |
| +2 to +8 °C | 5 days | 4 days |
| < -15°C | 5 days (dry ice) 2.5 days (PCM) | |
Ship frozen pharmaceutical products with dry ice
THERMOCON Classic systems have been tested and pre-qualified with dry ice in environmental test chambers using the external temperature profile specified in the European standard NF S 99-700.
THERMOCON Classic shippers with dry ice
Hold times up to 120 hours (payload temperature below −15 °C)
| Criterion | Classic Line | Slim Line |
|---|---|---|
| Focus | cost-effective single-use shipments | high thermal performance and reusability |
| Insulation | lightweight EPS insulated shipper | slim, high-performance VIP insulation |
| Cooling concept | mainly water-based; PCM or dry ice depending on the packout | PCM coolant packs |
| Packout | separate summer and winter packouts | largely identical packout for summer and winter |
| Return logistics | not required | part of the reusable process |
| Typical application | varying recipients and open distribution networks | closed-loop logistics and high performance requirements |
Which product line fits your shipping process?
The Classic Line and Slim Line are designed for different shipping scenarios. The following overview highlights their different features.
Pre-qualification in accordance with AFNOR NF S 99-700
THERMOCON Classic systems are tested and pre-qualified in environmental test chambers for a range of temperature conditions. Testing is carried out using defined summer and winter ambient temperature profiles in accordance with NF S 99-700.
Multiple temperature sensors are positioned diagonally throughout the payload space to record temperature performance at different measurement points and identify any potential hot or cold spots.
For these tests, the payload space is deliberately left empty or only minimally loaded. This means there is little or no additional thermal mass from the shipped product to buffer temperature fluctuations.
Pre-qualification · THERMOCON Classic 6.5 · empty payload space
Frequently asked questions
Why is the Classic Line cost-effective?
The Classic Line combines lightweight EPS insulated shippers, twelve sizes, standardised coolant packs and summer and winter packouts. It is designed for single-use shipments where the packaging is not returned.
What does “packout” mean?
A packout is the defined arrangement of the insulated shipper, coolant packs or dry ice, the products being shipped and any separator layers. The stated hold time applies only to this exact arrangement.
Does the Classic Line use water-based coolant packs?
Water-based coolant packs are used for many packouts in the +2 to +8 °C and +15 to +25 °C ranges. PCM is used when the temperature requirements or hold time call for it.
Can the coolant pack be reused?
Depending on the packout, the standard format is available as a reusable rigid coolant pack or a single-use Foam Brick. The Classic packaging itself is designed for single-use shipments.
What does “one coolant pack format for 30 systems” mean?
The same format can be used in 30 THERMOCON systems across different product lines. The number of coolant packs, how they are prepared and their positions in the packout are specified for each system.
Can the same Classic shipper be used for different temperature ranges?
For many sizes, several pre-qualified packouts are available. The applicable packout is specified in the relevant packing instructions.
Do you need a custom temperature range or profile?
Our thermal engineering team designs, manufactures and qualifies thermal packaging to your specifications and temperature profile.
