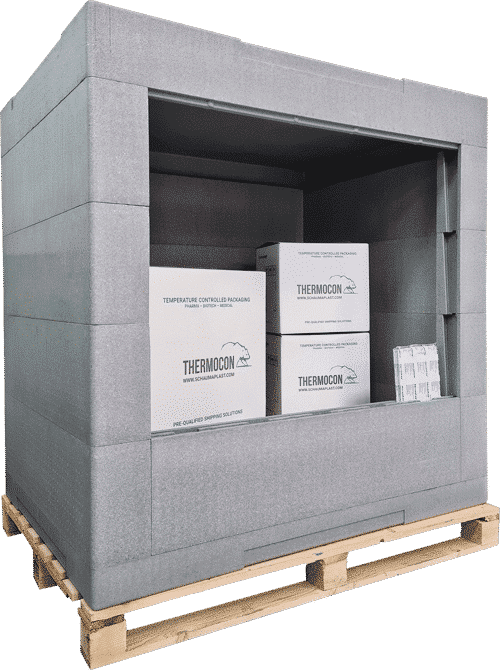

Pre-qualified pallet shipping systems for pharmaceuticals and biotech
Modular thermal packaging with 24 to 1,210 litres of payload space for temperature-controlled transport on and off pallets.
✓ modular expansion✓ multiple temperature ranges✓ climate chamber tested
expandable with modular extension frames
from 1/2 Euro pallet formats to pallet transporters
pre-qualified for Cold, CRT & Frozen
Passive thermal packaging for temperature-controlled transport on and off pallets.
Pre-qualified under AFNOR test conditions for temperature ranges of +2 to +8 °C, +15 to +25 °C and −15 to −25 °C, and for use with dry ice.
Modular insulated boxes with 24 to 1,210 litres of payload space, using a standard coolant pack format across all sizes.
Quick assembly
THERMOCON pallet shipping systems are quick and easy to assemble from just a few components. The joints are designed for error-free assembly, with no additional components requiring complex fastening.
Adjustable internal volume
Modular extension frames allow the pallet systems to be expanded as required. This lets you adapt the payload space to each shipment and minimise unused space.
Multiple temperature ranges
By changing the coolant pack set, the same pallet system can be used for temperature ranges of +2 to +8 °C, +15 to +25 °C and −15 to −25 °C. All pallet shippers can also be used with dry ice.
Key features
THERMOCON insulated pallet boxes
Tap the images for more information.
Sizes & hold times
Tested and pre-qualified in climate chambers. Compare the Pallet Line’s payload space, dimensions and hold times.
Half Pallet Shipper 24
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | 3 days | 4 days |
| +2 to +8 °C | 4 days | 2.5 days |
| < −15 °C | 5 days (dry ice) 2.5 days (PCM) | |
Half Pallet Shipper 53
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | 5 days | 5 days |
| +2 to +8 °C | 5 days | 4.5 days |
| < −15 °C | 5 days (dry ice) 2.5 days (PCM) | |
Half Pallet Shipper 70
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | 2.5 days | 5 days |
| +2 to +8 °C | 5 days | 4 days |
| < −15 °C | 5 days (dry ice) 2.5 days (PCM) | |
Small Pallet Shipper
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | 5 days | 5 days |
| +2 to +8 °C | 5 days | 5 days |
| < −15 °C | On request | |
Euro Pallet Shipper 150
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | On request | 5 days |
| +2 to +8 °C | 5 days | 5 days |
| < −15 °C | 7 days (dry ice) | |

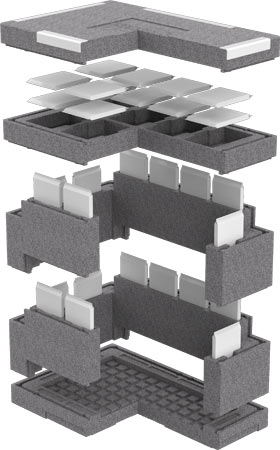

Euro Pallet Shipper 300
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | 4.5 days | 5 days |
| +2 to +8 °C | 5 days | 5 days |
| < −15 °C | 7 days (dry ice) | |

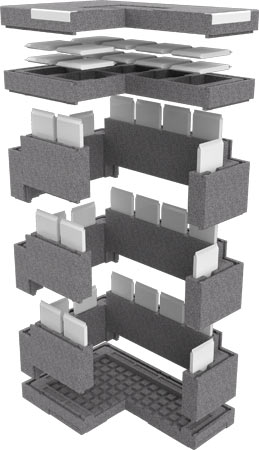

Euro Pallet Shipper 445
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | 3 days | 5 days |
| +2 to +8 °C | 5 days | 4.5 days |
| < −15 °C | 7 days (dry ice) | |

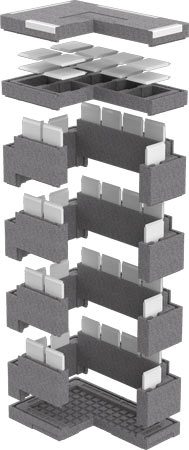

Euro Pallet Shipper 590
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | 4.5 days | 5 days |
| +2 to +8 °C | 5 days | 4.5 days |
| < −15 °C | On request | |
Pallet Transporter 610
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | 3.5 days | 5 days |
| +2 to +8 °C | 5 days | 4.5 days |
| < −15 °C | 6 days (dry ice) 2 days (PCM) | |

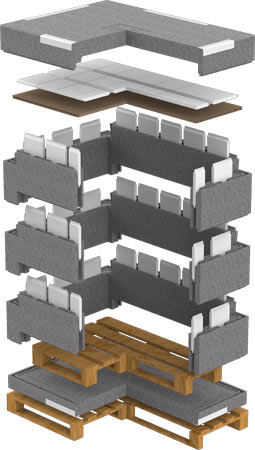

Pallet Transporter 910
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | 5 days | 5 days |
| +2 to +8 °C | 5 days | 4 days |
| < −15 °C | On request | |

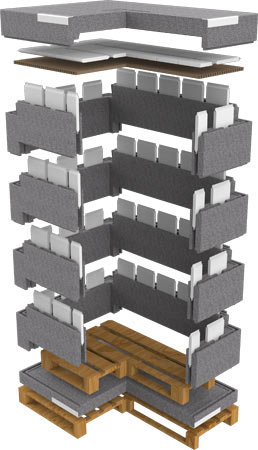

Pallet Transporter 1210
| Temperature | Winter | Summer |
|---|---|---|
| +15 to +25 °C | 5 days | 5 days |
| +2 to +8 °C | 5 days | 4 days |
| < −15 °C | On request | |
Pre-qualification with summer and winter profiles to AFNOR NF S99-700
The Pallet Line was tested in climate chambers using seasonal coolant pack configurations for summer and winter external temperatures. Performance documentation is available for each system. The illustration below is based on an actual test of the Pallet Transporter 1210 for +2 to +8 °C under a summer profile.
Quality assurance
Tests are based on established ASTM and WHO guidelines. The climate chambers and temperature loggers are calibrated annually.
Multiple measurement points
Sensors are positioned diagonally within the payload space to record temperature differences.
Minimal payload
Tests are carried out with an empty or minimally loaded payload space to represent thermally demanding worst-case conditions.
Pallet Line at a glance
Key answers to help you choose a pallet shipping system.
Depending on the system, published configurations are available for Controlled Room Temperature from +15 to +25 °C, Cold from +2 to +8 °C, Frozen below −15 °C with PCM, and Deep-Frozen applications with dry ice.
The current range comprises eleven systems with approximately 24 to 1,210 litres of payload space, from Half Pallet Shippers to Pallet Transporters.
Yes. Changing the approved coolant pack set allows a pallet system to be used for different temperature ranges. The relevant pre-qualified configuration must be followed.
The chart is a simplified illustration for the website of an actual Pallet Transporter 1210 test under an AFNOR summer profile. It does not replace the approved test report.
It provides a sound starting point. Before approving the system for use, assess the route, payload, packout, conditioning, monitoring and internal acceptance criteria together.
Do you need a custom temperature range or profile?
Our thermal engineering team designs, manufactures and qualifies thermal packaging to your specifications and temperature profile.
