Medi Line:
Reusable insulated boxes for the last mile
Open the lid for direct access to your products. The Medi Line combines a robust reusable box with vacuum insulation and PCM coolant packs for regular deliveries on the final leg of the journey.
- VIP integrated into the lid
- Approx. 6 or 18 litres
- Year-round packout
What makes this reusable insulated box different?
The Medi Line insulated box is designed to make transporting temperature-sensitive products reliable and straightforward under a wide range of conditions. The entire process, from packing and transport to removing the products, is efficient and easy to manage.
High thermal performance.
High-performance components: a robust outer box, VIP insulation & PCM cooling.
Easy handling.
Direct access to your products &
the same PCM packing process in summer and winter. Available in two sizes.
Pre-qualified for Cold, Ambient and Frozen.
Tested temperature ranges:
+2 to +8 °C, +15 to +25 °C and −15 to −25 °C.

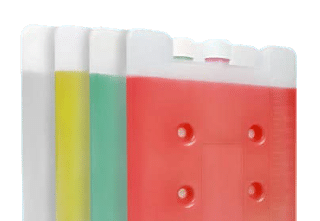

PCM pack sets for Cold, Ambient and Frozen
One base box. Three temperature ranges.
FROZEN
−25 to −15 °C
1–2 days
Shipping duration for Medi Line MEDIUM and LARGE
COLD
+2 to +8 °C
2–3 days
Shipping duration for Medi Line MEDIUM and LARGE
CRT
+15 to +25 °C
3.5+ days
Shipping duration for Medi Line MEDIUM and LARGE
Pre-qualification test conditions: Ambient temperature profile in accordance with ISTA 7E, with an empty payload space (worst-case scenario).
Need a different temperature range or a test based on your own temperature profile? Talk to us about a suitable configuration and testing.
TWO SIZES
How much payload space do you need?
Usable volumes refer to the space inside the product carton. All dimensions are given as length × width × height.
MEDI LINE MEDIUM
Approx. 6 litres
Payload space inside the product carton
Internal dimensions of the product carton
Approx. 260 × 120 × 190 mm
External dimensions
Approx. 400 × 300 × 332 mm
Empty weight
Approx. 5.7 kg
Internal space without the carton or coolant packs
Approx. 280 × 190 × 235 mm at the base; 290 × 200 × 235 mm at the top
MEDI LINE LARGE
Approx. 18 litres
Payload space inside the product carton
Internal dimensions of the product carton
Approx. 390 × 270 × 170 mm
External dimensions
Approx. 600 × 400 × 342 mm
Empty weight
Approx. 10.7 kg
Internal space without the carton or coolant packs
Approx. 470 × 280 × 245 mm at the base; 490 × 300 × 245 mm at the top
MEDIUM and LARGE use the same system design: a reusable box, VIP insulation and PCM coolant packs. The required temperature range determines the PCM pack configuration.
FOR THE FINAL LEG OF DELIVERY
Easy access throughout the delivery run.
The Medi Line is suited to deliveries that call for a reusable box and easy access to the products.
Direct access to your products

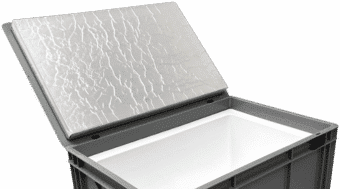

The top vacuum insulation panel is integrated into the lid. Opening the lid gives direct access to the payload space, with no separate VIP panel to remove.
For regular delivery runs

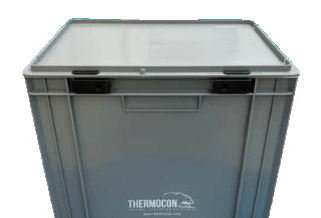

The impact-resistant plastic box is easy to clean and stack. Folding handles make it comfortable to carry, and the sturdy latches can be fitted with security seals.
One packing process for summer and winter
For the selected temperature range, the PCM pack configuration and pre-conditioning procedure are the same in summer and winter. Follow the corresponding packing instructions.
Where the Medi Line is used
Sensitive samples, medicines and laboratory materials need to be transported safely within their required temperature range.
The THERMOCON Medi Line is a reusable insulated box with a year-round PCM pack configuration:
a robust outer shell, efficient vacuum insulation and high-performance PCM packs.
From last-mile delivery and clinical trials to hospital use, the box provides thermal & mechanical protection for demanding applications.
Last-mile delivery
Protection on the critical last mile, with
controlled temperatures right through to delivery.
Clinical trials
Temperature control for clinical trials to protect sensitive samples and medicines.
Vaccines & medicines
Protection for pharmaceutical products by maintaining the required temperature range.
Transport within hospitals
An efficient solution for transporting sensitive medicines and samples within hospitals under controlled temperatures.
Veterinary medicine
An insulated box for vaccines, medicines and other temperature-sensitive veterinary products.
Water & soil samples
Robust insulation for environmental samples, with temperature control from collection to analysis.
Thermal performance
for your sensitive products.
High thermal performance for Cold, Ambient and Frozen
The THERMOCON Medi Line has been extensively tested for Frozen (−15 to −25 °C), Cold (+2 to +8 °C) and Ambient (+15 to +25 °C) under worst-case conditions with an empty payload space. Tests in our in-house climate chambers document high thermal performance under demanding temperature profiles.

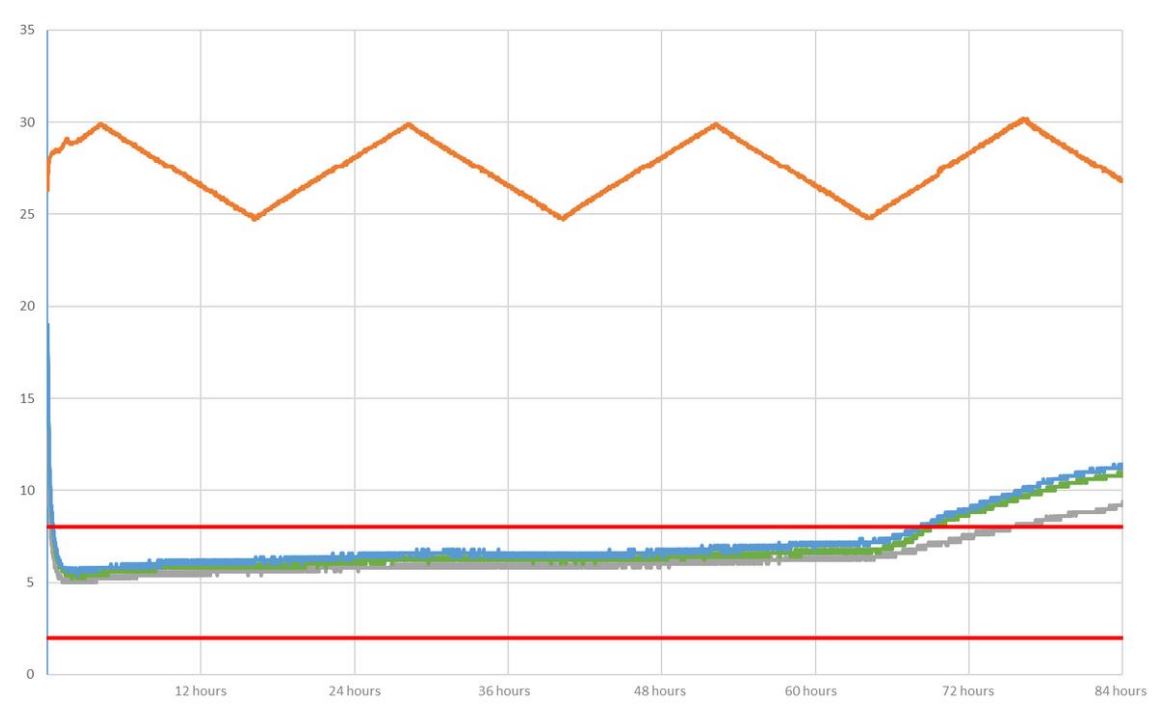

Test method: ISTA 7E ambient temperature profile, with an empty payload space. The chart shows a climate chamber test of the THERMOCON Medi Line Large at +2 to +8 °C.
YOUR APPLICATION
Enquire about the Medi Line
Tell us the required product temperature, payload space, transport duration and how your delivery run is organised. We can then help you select the right size and system configuration.
Enquire about the Medi Line
Select the size and configuration you need. If you are unsure, we can advise you. Fields marked with * are required.
Prefer to send your requirements by email? info@thermocon.cool
MEDI LINE QUESTIONS
What to know before first use.
How does the Medi Line differ from a standard insulated box?
The Medi Line is a reusable system combining a robust plastic box, vacuum insulation and PCM coolant packs. The top VIP panel is built into the lid, giving you direct access to the payload space when you open it.
How much space is available for my products?
The product carton provides approximately 6 litres of payload space in MEDIUM and 18 litres in LARGE. Also check the internal carton dimensions when choosing a size: approximately 260 × 120 × 190 mm and 390 × 270 × 170 mm respectively.
Do I need to change the pack configuration between summer and winter?
For the selected temperature range, the same PCM coolant packs and pre-conditioning procedure are used in summer and winter. For each target temperature, follow the corresponding system configuration and packing instructions.
Do the stated durations also apply to deliveries with multiple stops?
The published durations are based on ISTA 7E tests with an empty payload space. Repeated opening and your actual delivery route need to be assessed separately. Please tell us the transport duration, ambient conditions and planned stops.
Can the box be cleaned and secured?
The plastic box is designed for reuse and can be cleaned. The sturdy latches can be fitted with security seals. Inspect the box, insulation and coolant packs before each reuse.
Can you test a custom temperature profile?
Yes. Custom temperature ranges and test profiles are available on request. To discuss a suitable configuration, we need details such as the target temperature, transport duration, product dimensions and planned delivery process.
