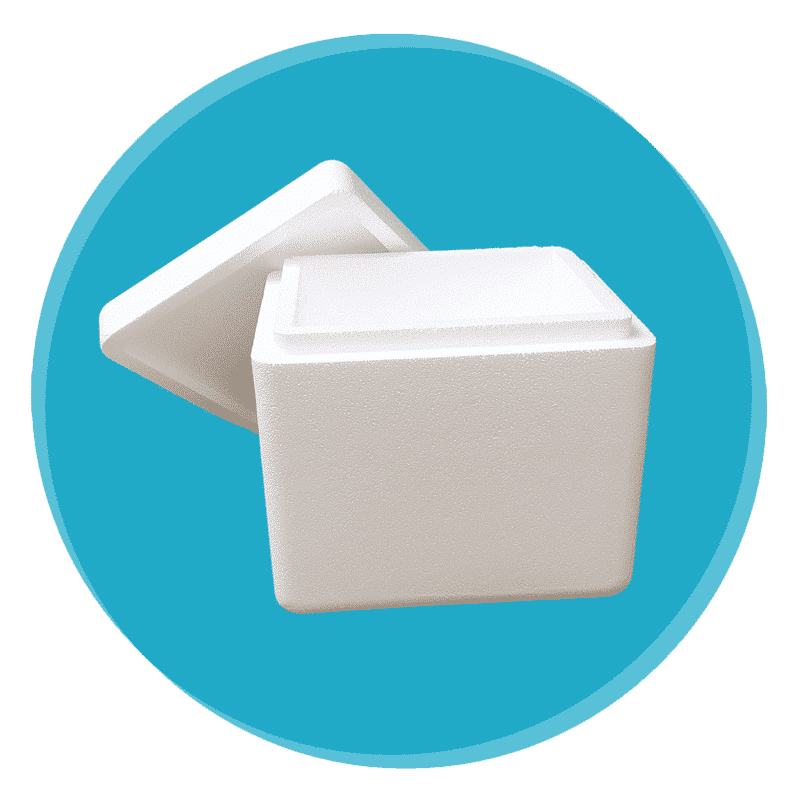

EPS insulated shippers
Effective thermal insulation. Minimal packaging weight. Explore standard EPS shipper sizes and packaging quantities for temperature-sensitive goods.
Lightweight insulation for your shipment
Thermal insulation
EPS insulation supports temperature control for temperature-sensitive goods and helps maintain the cold chain.
Lightweight and durable
The shock-absorbing structure protects delicate contents while helping reduce fuel and handling costs. EPS is a recyclable material.
Moisture and leak resistance
EPS helps keep contents dry and contain spills, including in seafood and medical sample applications.
Cost-effective protection
EPS insulated shippers offer a cost-effective option compared with VIP systems or rigid plastic containers, particularly for large-volume or single-use applications.
Compare standard shipper sizes
Sizes are listed by ascending payload volume. Payload means usable product space. Dimensions and wall thickness are shown in inches and millimeters. Packaging quantities are listed by model. Select a product to request pricing.
67041
Payload: 3.2 L
External dimensions · L × W × H
10 ¼ × 6 5/8 × 7 ¼ in
(260 × 168 × 184 mm)
Internal dimensions · L × W × H
7 7/8 × 4 ¾ × 5 ¼ in
(200 × 121 × 133 mm)
Wall thickness
1 1/8 in
(28.6 mm)
Packaging
100 per Bndl
Kitted/Boxes:
144 per Pallet
Carton
X
SP 4
Payload: 3.2 L
External dimensions · L × W × H
11 × 9 × 7 ¼ in
(279 × 229 × 184 mm)
Internal dimensions · L × W × H
7 ¾ × 6 × 4 ¼ in
(197 × 152 × 108 mm)
Wall thickness
1 ½ in
(38.1 mm)
Packaging
240 per Pallet / 1 ½ Bndl
Kitted/Boxed:
120 per Pallet
Carton X
SP 2
Payload: 3.5 L
External dimensions · L × W × H
10 ¾ × 7 ¼ × 8 ¾ in
(273 × 184 × 222 mm)
Internal dimensions · L × W × H
8 × 4 ½ × 6 in
(203 × 114 × 152 mm)
Wall thickness
1 3/8 in
(34.9 mm)
Packaging
144 per Pallet
Carton X
EB-S
Payload: 4.7 L
External dimensions
11 1/8 × 9 in
(283 × 229 mm)
Wall thickness
½ in
(12.7 mm)
Packaging
24 per Case
X1
Payload: 5.5 L
External dimensions · L × W × H
12 ⅛ × 10 ⅛ × 11 in
(308 × 257 × 279 mm)
Internal dimensions · L × W × H
8 × 6 × 7 in
(203 × 152 × 178 mm)
Wall thickness
2 in
(50.8 mm)
Packaging
112 per Pallet
EB-M
Payload: 6.5 L
External dimensions
9 3/8 × 11 ½ in
(238 × 292 mm)
Wall thickness
½ in
(12.7 mm)
Packaging
14 per Case
12 per Cases/Pallet
SP 8
Payload: 7 L
External dimensions · L × W × H
12 × 10 ¼ × 11 in
(305 × 260 × 254 mm)
Internal dimensions · L × W × H
8 ¾ × 7 × 7 in
(305 × 260 × 254 mm)
Wall thickness
1 ½ in
(38.1 mm)
Packaging
144 per Pallet / 1 ½ Bndl
Kitted/Boxed:
96 per Pallet
Carton X
EB-L
Payload: 10 L
External dimensions
13 ½ × 11 ½ in
(343 × 292 mm)
Wall thickness
½ in
(12.7 mm)
Packaging
12 per Case
12 per Cases/Pallet
67057
Payload: 11.1 L
External dimensions · L × W × H
11 3/8 × 10 ½ × 10 3/8 in
(289 × 267 × 264 mm)
Internal dimensions · L × W × H
9 3/8 × 8 5/8 × 8 3/8 in
(238 × 219 × 218 mm)
Wall thickness
1 in
(25.4 mm)
Packaging
144 per Pallet
18 per Bag
114
Payload: 12 L
External dimensions · L × W × H
11 ¾ × 9 ¾ × 10 7/8 in
(298 × 248 × 276 mm)
Internal dimensions · L × W × H
10 × 8 × 9 1/8 in
(254 × 203 × 231 mm)
Wall thickness
7/8 in
(22.2 mm)
Packaging
128 Sets / Pallets
64 per Bndl
Carton X
SP 16
Payload: 12.8 L
External dimensions · L × W × H
13 ¾ × 11 ¾ × 12 ¼ in
(349 × 298 × 311 mm)
Internal dimensions · L × W × H
10 ¼ × 8 ¼ × 9 ¼ in
(260 × 210 × 235 mm)
Wall thickness
1 ½ in
(38.1 mm)
Packaging
63 per Pallet
Kitted/Boxed:
54 per Pallet
Carton X
X2
Payload: 13.5 L
External dimensions · L × W × H
14 ¾ × 12 ¾ × 13 ⅛ in
(267 × 216 × 235 mm)
Internal dimensions · L × W × H
10 ½ × 8 ½ × 9 ½ in
(267 × 216 × 235 mm)
Wall thickness
2 in
(50.8 mm)
Packaging
54 per Pallet
11001-S
Payload: 14.8 L
External dimensions · L × W × H
13 ½ × 10 3/8 × 11 in
(343 × 364 × 279 mm)
Internal dimensions · L × W × H
12 × 8 7/8 × 8 ½ in
(305 × 226 × 216 mm)
Wall thickness
¾ in
(19 mm)
Packaging
Upon request
122
Payload: 21.6 L
External dimensions · L × W × H
14 3/8 × 12 3/8 × 12 1/8 in
(365 × 314 × 308 mm)
Internal dimensions · L × W × H
12 3/8 × 10 3/8 × 10 ¼ in
(314 × 264 × 260 mm)
Wall thickness
1 in
(25.4 mm)
Packaging
54 Sets / Pallets27
per Bndl
Carton X
109
Payload: 26.3 L
External dimensions · L × W × H
17 × 11 ½ × 12 15/16 in
(432 × 292 × 329 mm)
Internal dimensions · L × W × H
15 × 9 ½ × 11 ¼ in
(381 × 241 × 286 mm)
Wall thickness
7/8 in
(22.2 mm)
Packaging
14 per case
8 Cases / Pallet
SP 20
Payload: 30.7 L
External dimensions · L × W × H
16 × 15 × 15 in
(330 × 305 × 305 mm)
Internal dimensions · L × W × H
13 × 12 × 12 in
(330 × 305 × 273 mm)
Wall thickness
1 ½ in
(38.1 mm)
Packaging
30 per Pallet
GF
Payload: 41.5 L
External dimensions · L × W × H
18 × 16 × 16 in
(457 × 406 × 406 mm)
Internal dimensions · L × W × H
15 × 13 × 13 in
(381 × 330 × 330 mm)
Wall thickness
1 ½ in
(38.1 mm)
Packaging
30 per Pallet
Carton X
SP 30 (new F2)
Payload: 63.8 L
External dimensions · L × W × H
23 5/8 × 17 × 14 in
(600 × 432 × 356 mm)
Internal dimensions · L × W × H
21 5/8 × 15 × 12 in
(549 × 381 × 305 mm)
Wall thickness
1 in
(25.4 mm)
Packaging
24 Sets / Pallets
Carton X
11004-S
Payload: 92.3 L
External dimensions · L × W × H
24 × 18 × 18 in
(610 × 457 × 457 mm)
Internal dimensions · L × W × H
22 × 16 × 16 in
(559 × 406 × 406 mm)
Wall thickness
1 in
(25.4 mm)
Packaging
Upon request
Need another size?
Tell us your required payload dimensions and shipping application.
67041 and SP 4: same volume, different dimensions
67041: narrower and taller inside
The 67041 has an internal space of 7 ⅞ × 4 ¾ × 5 ¼ in, with 1 ⅛-in walls.
Compared with SP 4, it gives you an extra inch of internal height but 1 ¼ in less width. Both are listed at 3.2 L.
SP 4: wider, with thicker walls
SP 4 has an internal space of 7 ¾ × 6 × 4 ¼ in and 1 ½-in walls. It is wider and shallower inside than the 67041. Check the fit of the complete packout, including coolant packs and protective material, rather than choosing by liters alone.
Specify the packing format with your order
For SP 4, the catalog lists 240 units per pallet, or 120 in the kitted/boxed format. SP 16 is listed at 63 per pallet, or 54 kitted/boxed. The format changes the delivery quantity even though the box model stays the same.
For your quote, tell us the model, quantity and delivery ZIP code, and whether an outer shipping carton is required. For regular shipments, include your expected monthly quantity.
Manufacturing experience since 1964
Since 1964, the Schaumaplast Group has produced molded parts and packaging from EPS, EPP and other particle foams. It operates three locations in Germany and additional production sites in Poland and the United States.
THERMOCON is the Group’s dedicated business unit for passive cold chain packaging, bringing development and production together.
Questions about EPS insulated shippers
Can EPS shippers be used with dry ice or coolant packs?
Yes. Select the shipper and complete packout for the required product temperature, shipping duration and payload.
What does payload volume mean?
It is the usable product space stated for the model. Check the listed dimensions and allow for any coolant packs or additional packaging required by your configuration.
What is included in a typical shipper?
The EPS container and matching lid form the basic configuration. Some models also use an extension frame. Confirm the selected product and packaging quantity when requesting pricing.
Are custom sizes available?
Contact our team with your required dimensions and application if the listed standard sizes do not meet your needs.
Find an EPS shipper for your product
Send us the payload dimensions, temperature range, shipping duration and quantity.
